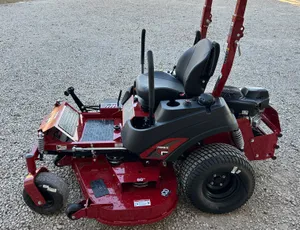

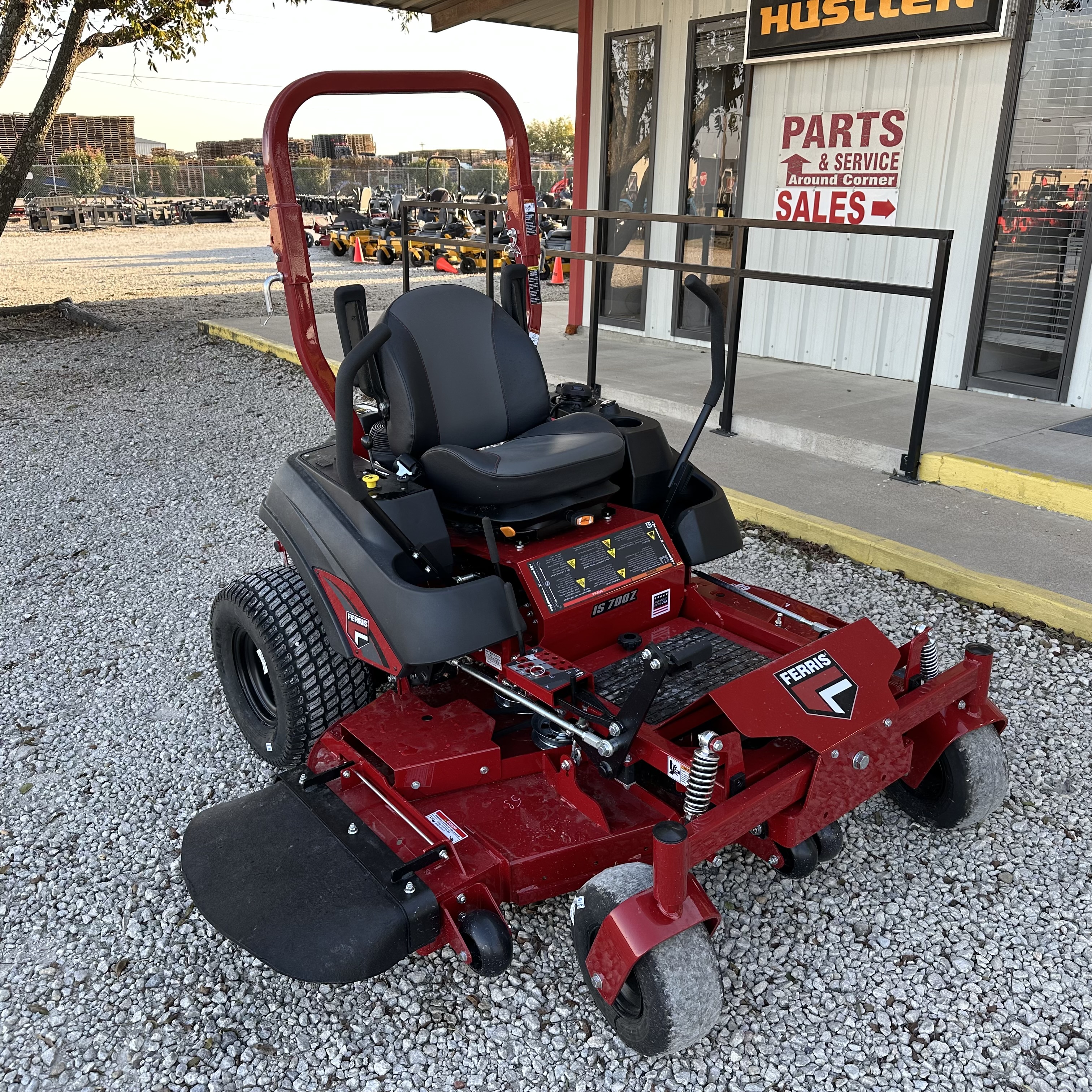

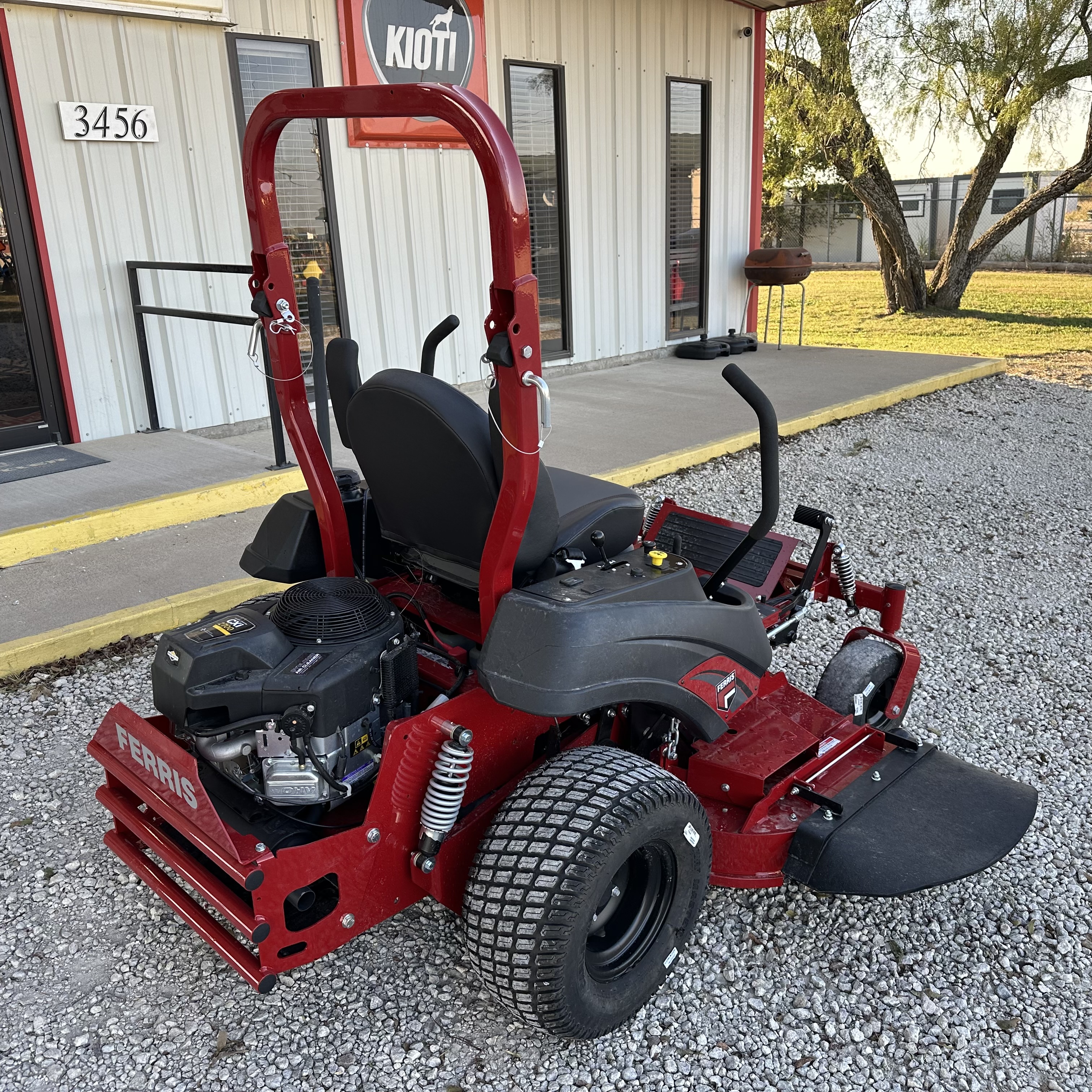

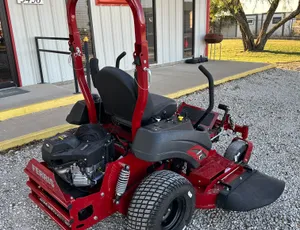

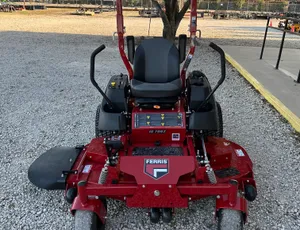

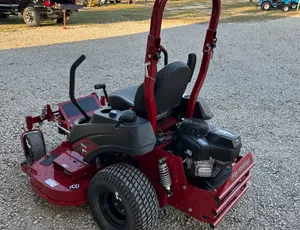

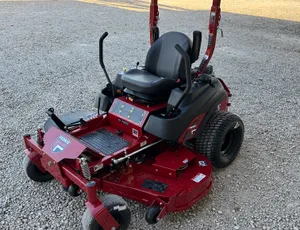

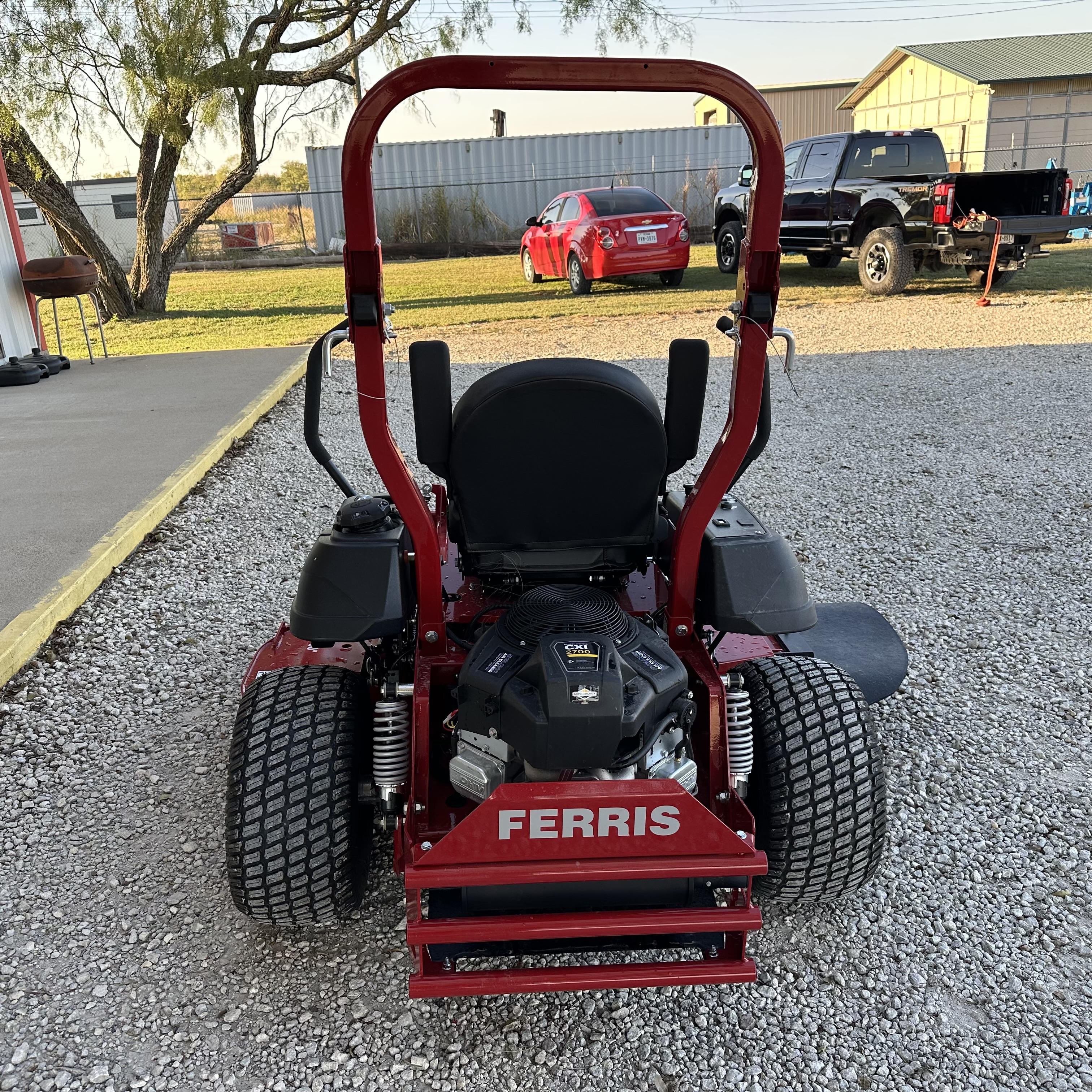

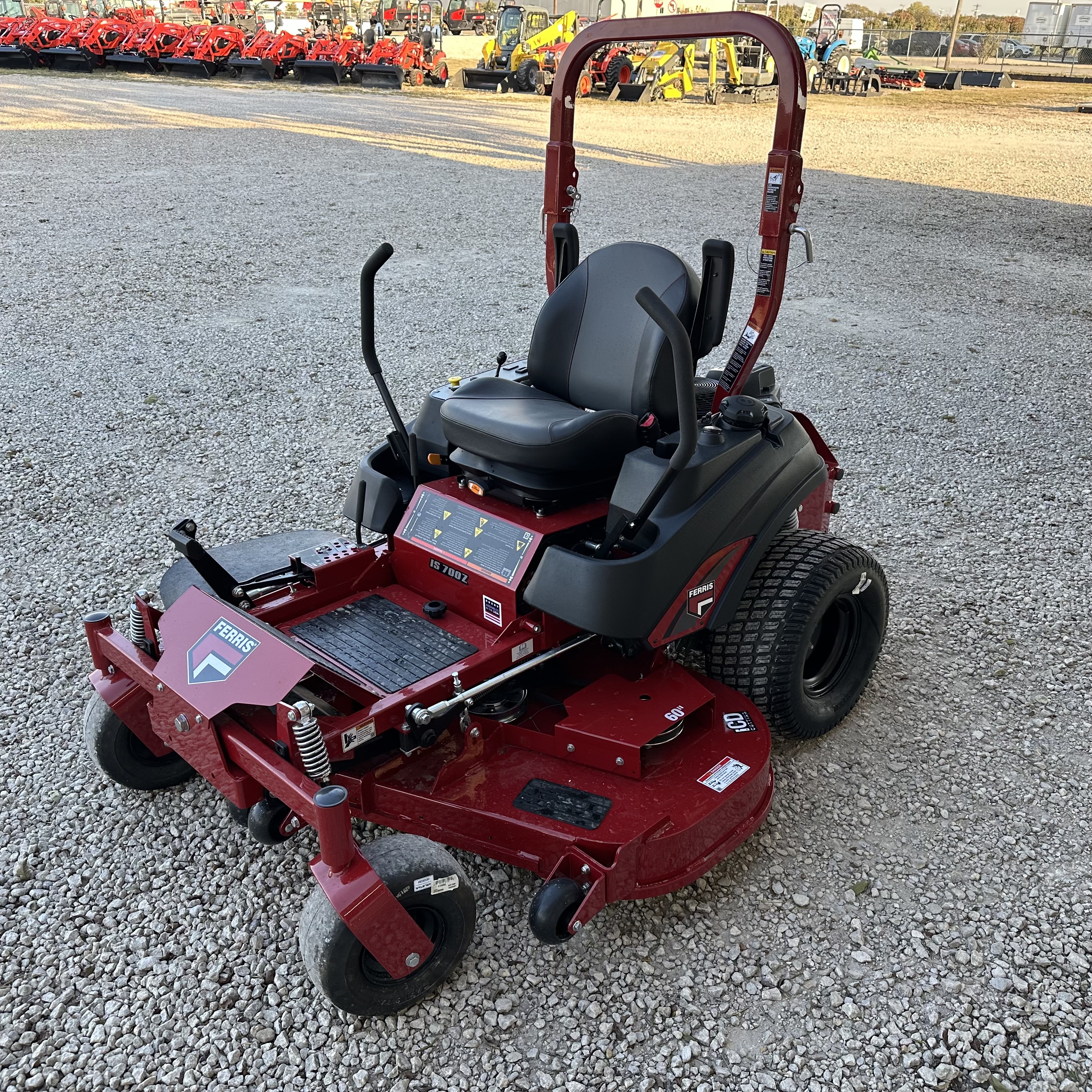

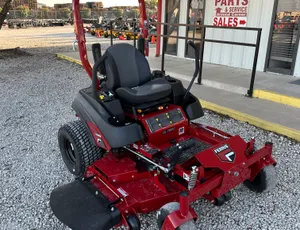

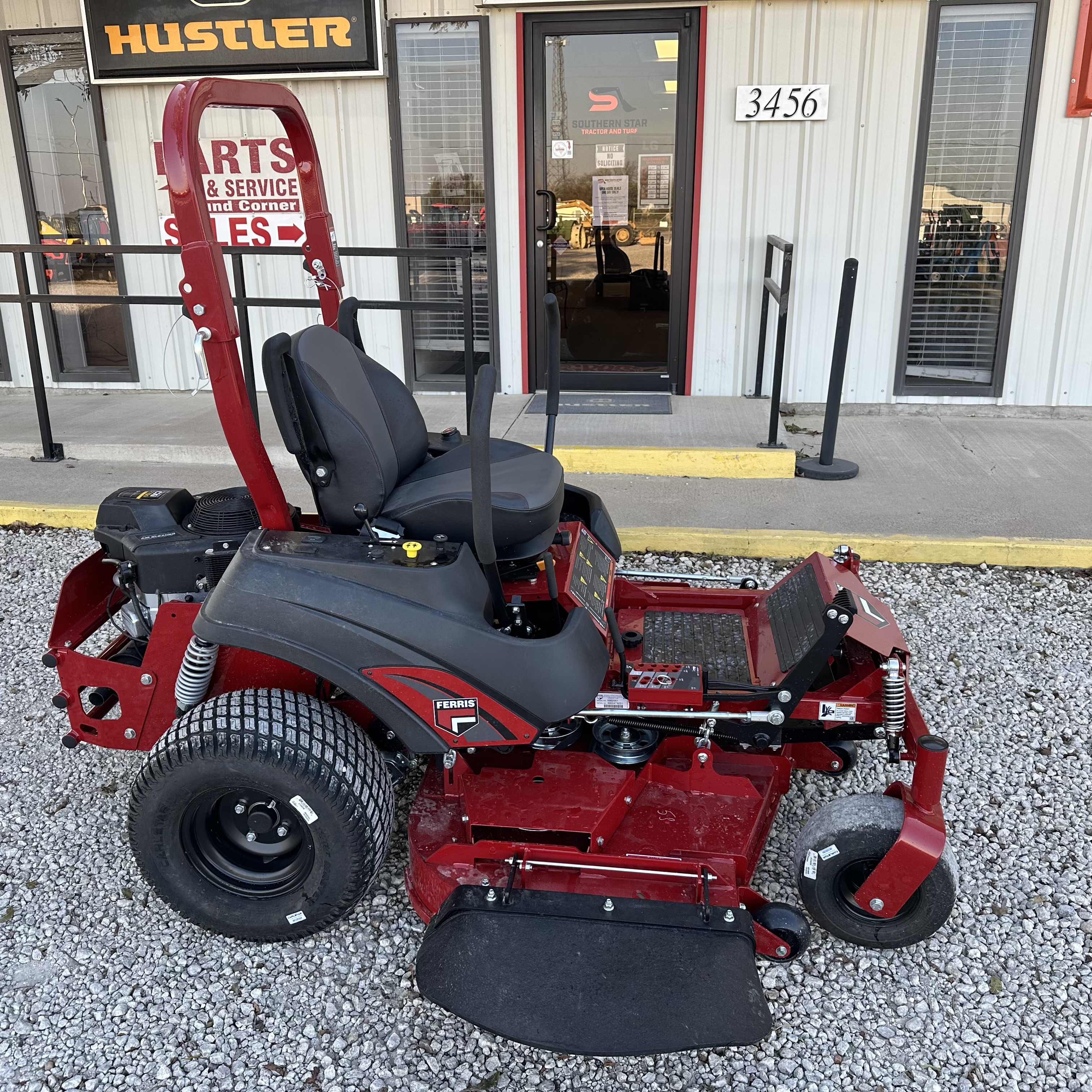

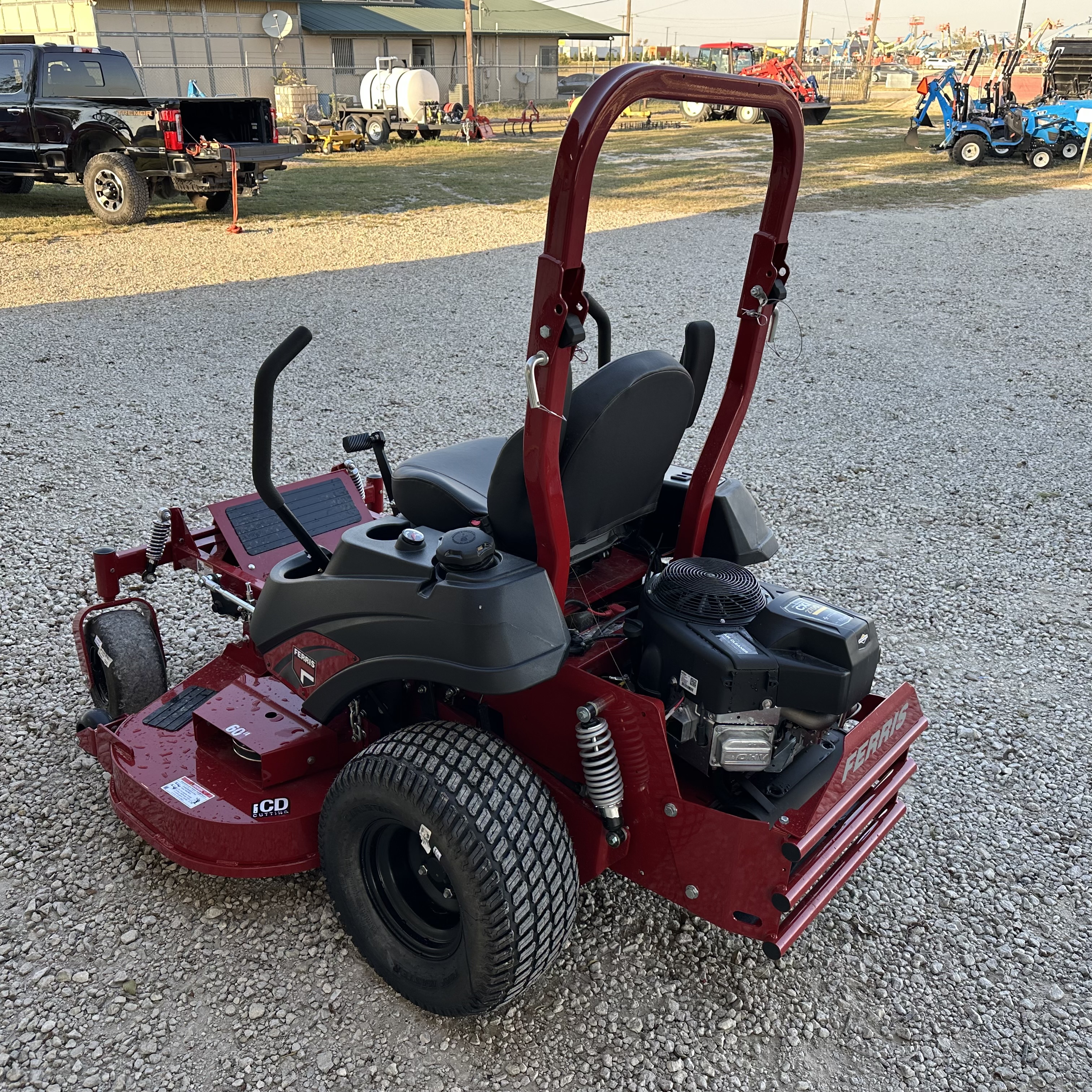

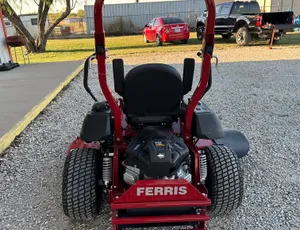

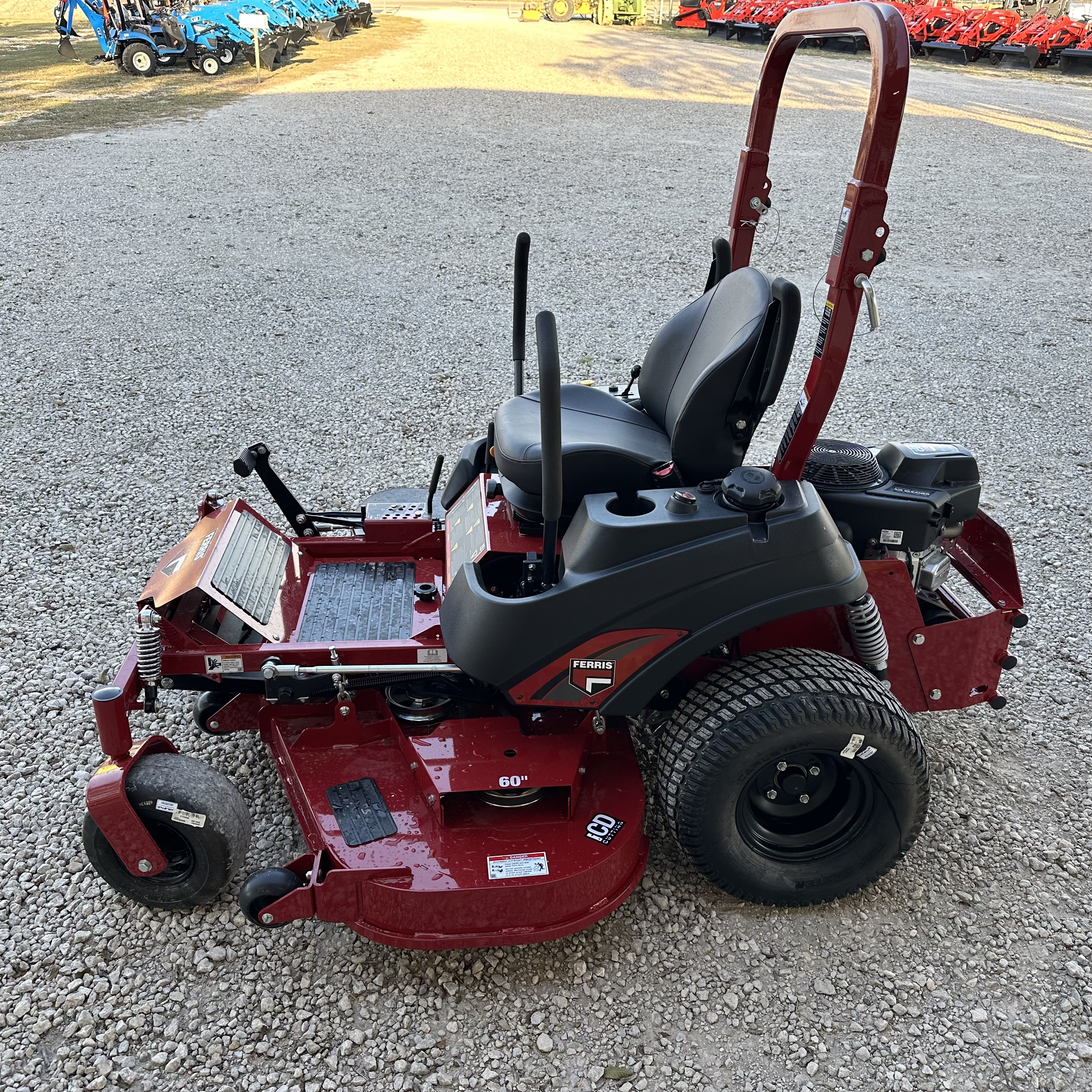

New   Ferris IS700 60in

back to top

Features

Patented Suspension: Pivoting front axle plus small shocks and medium rear shocks allow the wheels to follow the ground and improve comfort in a wide variety of conditions.	Exceptional Performance: The well-tuned steering system delivers smooth and confident operation for excellent performance time after time.
Integrated Transmissions: Commercial Hydro-Gear® ZT-3200™ transaxles are designed for high performance and are fully serviceable.	Easy Access: Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.
iCD™ Cutting System: The iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions. Every component works together to achieve superior cut quality and longer component life.	Mower Spindles: Cast-aluminum greaseable spindles feature 1” shaft with 2.5” x 1” dual ball bearings with top access grease fittings and pressure relief valve.
Heavy-Duty Bumper: Heavy-duty bumper protects the engine while also allowing for easy service access.	Ride-On Mower Warranties†: Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.
Acres Per Hour: Mows up to 5 acres per hour, based on 80% efficiency.	Miles Per Hour: Up to 10 MPH ground speed, reverse 5 MPH.

back to top

Specifications

Model Number: 5902061	Engine Brand: Briggs & Stratton® CXi
Engine Power Rating *: 27	Displacement (cc): 810
PTO: Electric	Cylinders: 2
Starter: Electric	Fuel Type: Gasoline
Fuel Tank Capacity (gal): 5.5	Deck Size (in): 60
Cutting Height (in): 1.5 - 5	Spindles: Aluminum Greaseable
Deck Construction: iCD™ Cutting System	Suspension: Adjustable front and rear coil-over shocks with pivoting front axle and a rear swing-arm with large adjustable coil-over shocks
Transmission: Dual, commercial Hydro-Gear ZT-3200® Transaxles with 7" cooling fans	Drive Axles (in): 1.125
Caster Tires (in): 13 X 6.5-6	Drive Tires (in): Reaper, 22 X 11-10
Ground Speed-Fwd (mph): 0-10	Ground Speed-Rev (mph): 0-5
Overall Length (in): 81	Overall Width (in) Deflector Down/Deflector Up: 74/65
Dry Weight (lbs): 1140	Seat Package: Mid-back suspension seat with adjustable arm rests
Certified Roll-over Protection System: Standard, 180° foldable	Controls / Safety Group: Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit: Internal transaxles	Engine Configuration: Briggs & Stratton®
