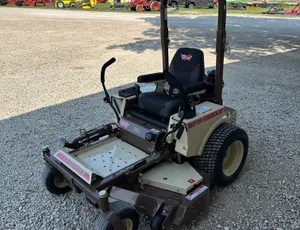

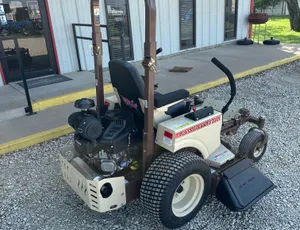

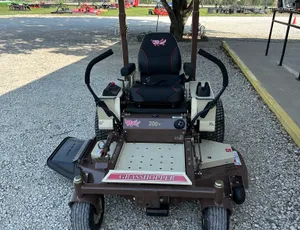

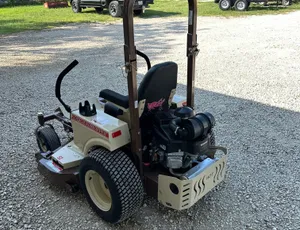

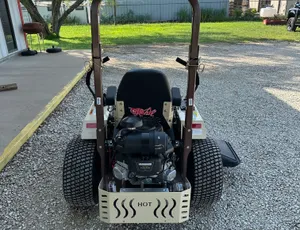

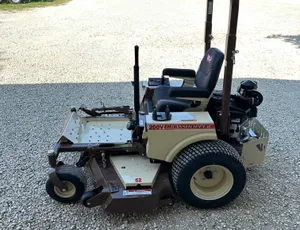

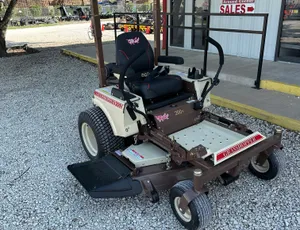

New   Grasshopper 226V 52"

Grasshopper   Grasshopper   226V 52"

x
  Description

Description

226V 52"

Features
back to top
ENGINE

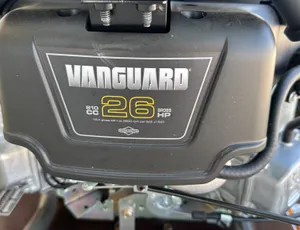

Type/Horsepower/Cylinders: B&S Vanguard, V-Twin Displacement: 49.4 cu. in. (810 cc)
Lubrication System: Pressure Lube/Filter Crankshaft: Vertical
Cooling System: Air Fuel: Gasoline - unleaded
Fuel Capacity: 6.5 U.S. Gal. (26.6 l) Optional Fuel Capacity: NA
Air Cleaner: Remote-mounted, centrifugal multi-stage air cleaner with advanced debris management Muffler: Ultra quiet, single, industrial type.
back to top
DURAMAX® DECKS
DECK: NA Mulching Package #: 504567(52), 504569(61)
CUTTING HEIGHT RANGE: 1.0 to 4.5 in. (2.5 to 11.4 cm) CONSTRUCTION (Robotic-welded steel): Double-layered 10-gauge plus 7-gauge formed-steel laminated spindle plane 0.313 in (7.95 mm) thic - more than 25% thicker than 0.25 in. (6.35 mm) with 7-gauge skirts for geometric strength. Spindle plane is 0.9 in.(22.86 mm) thick in stress zones. Anvil
SPINDLE ASSEMBLIES: Sentry™ Spindle System, 2.5 cm (approx. 1 in.) O.D. shaft. Spindle head designed to eliminate fiber wrap. Double bearings, non-greasable. Spindle cones shield housing and lower bearings from fiber wrap and dirt ingestion. SPINDLE HOUSINGS: 8 in. (20.3 cm)-diameter machined aluminum housing with 6-bolt pattern.
BLADE DRIVE: Belt drive with single Kevlar V-belt and idler arm tensioning.
back to top
STARTER & ELECTRICAL SYSTEM
Battery (maintenance-free): 12 Volt Starter: Solenoid shift
Ignition: Breakerless Interlock System: Prevents engine start when PTO clutch is engaged or steering levers are in drive position. Allows operator dismount without engine shutdown only when PTO is disengaged and steering levers are locked in neutral.
back to top
ULTIMATE OPERATOR STATION
Seat: Iso-mounted Premium Comfort Seat. Features include a high-back, deep-cushioned, foam-padded Cordura®-covered, padded foldable arm rests, padded backrest with lumbar support, coil-spring suspension and embroidered Grasshopper logo on seat back. Adjustable fore and aft. Suspension: Roomy, iso-mounted footrest with Shock Impact Reduction System™ (SIRS™).
Console-mounted Instruments: Digital hour meter, parking brake indicator light, ignition switch, choke and push/pull PTO switch. Work Lights: Optional - LED
Hour Meter: Standard
back to top
TRANSMISSION & STEERING
Type: Heavy-duty Hydro-Gear ZT4400 hydrostatic transmissions with cooling fans, integrated transaxles with 12cc piston pumps and 16cc piston motors, gear reduction, internal disc brakes, and 1-3/8 inch axles. Filtration/Hydro Fluid: Self-contained fluid and internal filtration. CoolTemp HydroMax� fluid withstands high and low temperature extremes for extended service intervals after 100-hour break-in oil change.
Speed: 0 - 9.0 mph (0 - 14.5 kph) forward 0 - 6.0 mph (0 - 9.7 kph) reverse Turning Radius: True zero degree, turns within own length with counter-rotating, independently powered drive wheels.
Steering: One- or two-hand operation with adjustable HydraSmooth™ QuikAjust Tilt™ dual levers with 9-inch adjustment for a custom fit that automatically return to neutral from either forward or reverse position. Brakes: Dynamic braking through hydrostatic transmission.
Parking Brake: Internal disc brake in transmission Attachment Drive: NA
back to top
TIRE SIZES
Drive Wheels – Optional (4-ply rated): NA Front Wheels – All Models: 13x6.50x6; pneumatic with greasable, double-sealed bearings to protect from grass wrap.
Drive Wheels – Standard (4-ply rated): NA Drive Wheels – Optional (4-ply rated): NA
Single Tail Wheel: NA Wide Stance Single Fork Tail Wheel: NA
back to top
DIMENSIONS
Height (Seat Back): 46.0 in. (116.9 cm) Height (Seat Cushion): 30.0 in. (76.2 cm)
Height (ROPS): 68.0 in. (172.7 cm) FrontMount PowerUnit Only (Width/Length): NA
FrontMount Power Unit (Wheelbase): NA
back to top
WEIGHT
FrontMount Power Unit Only (uncrated): NA

$9,800
