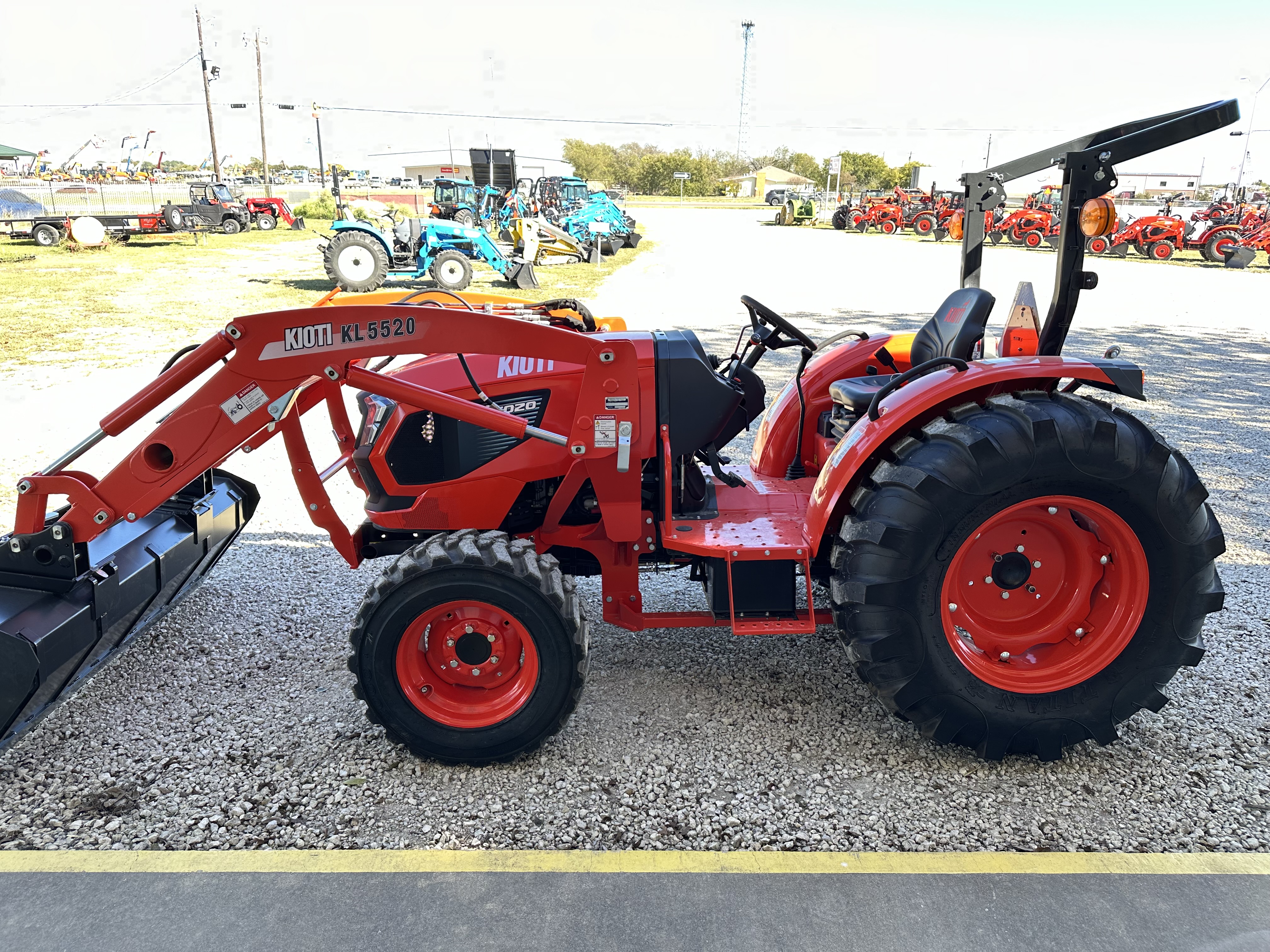

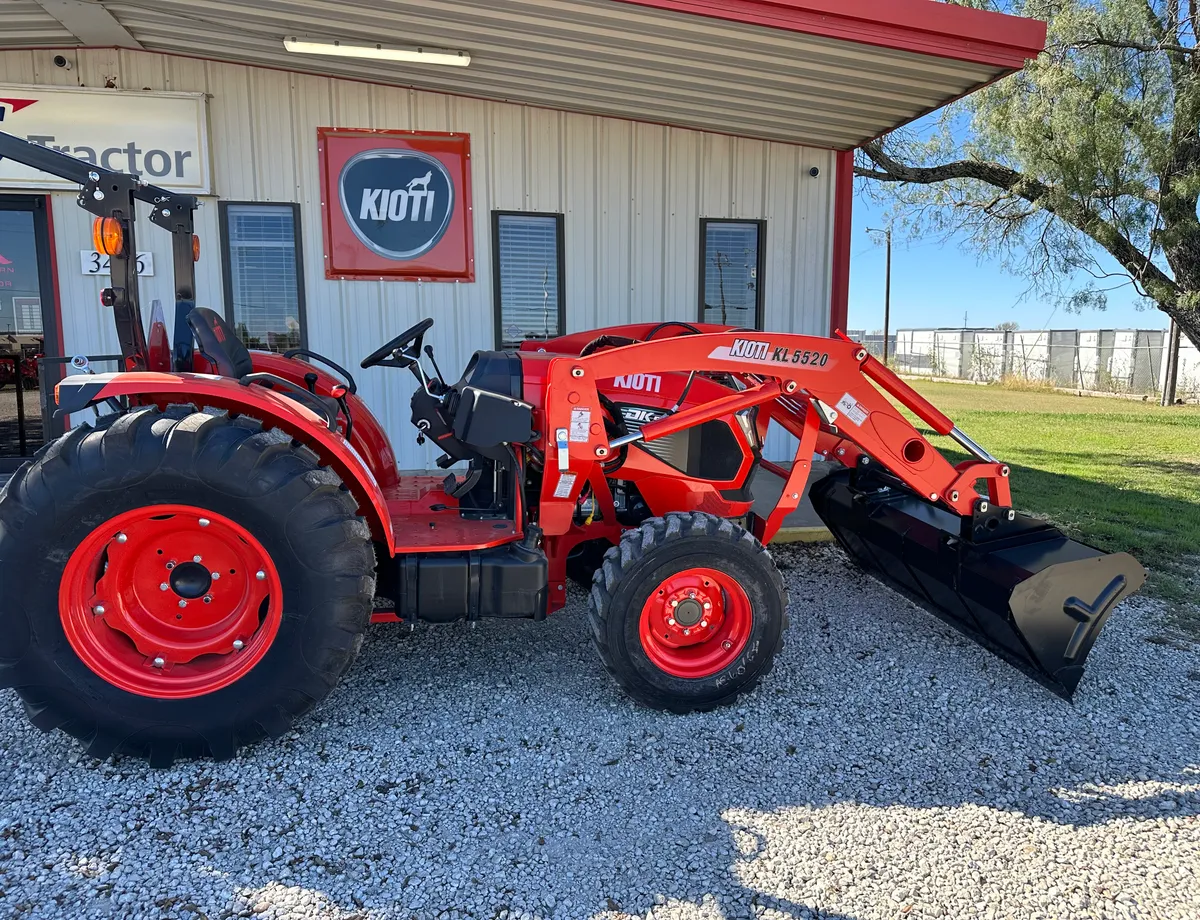

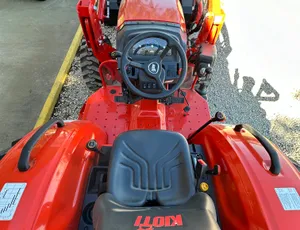

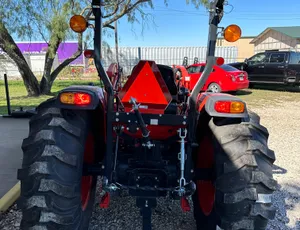

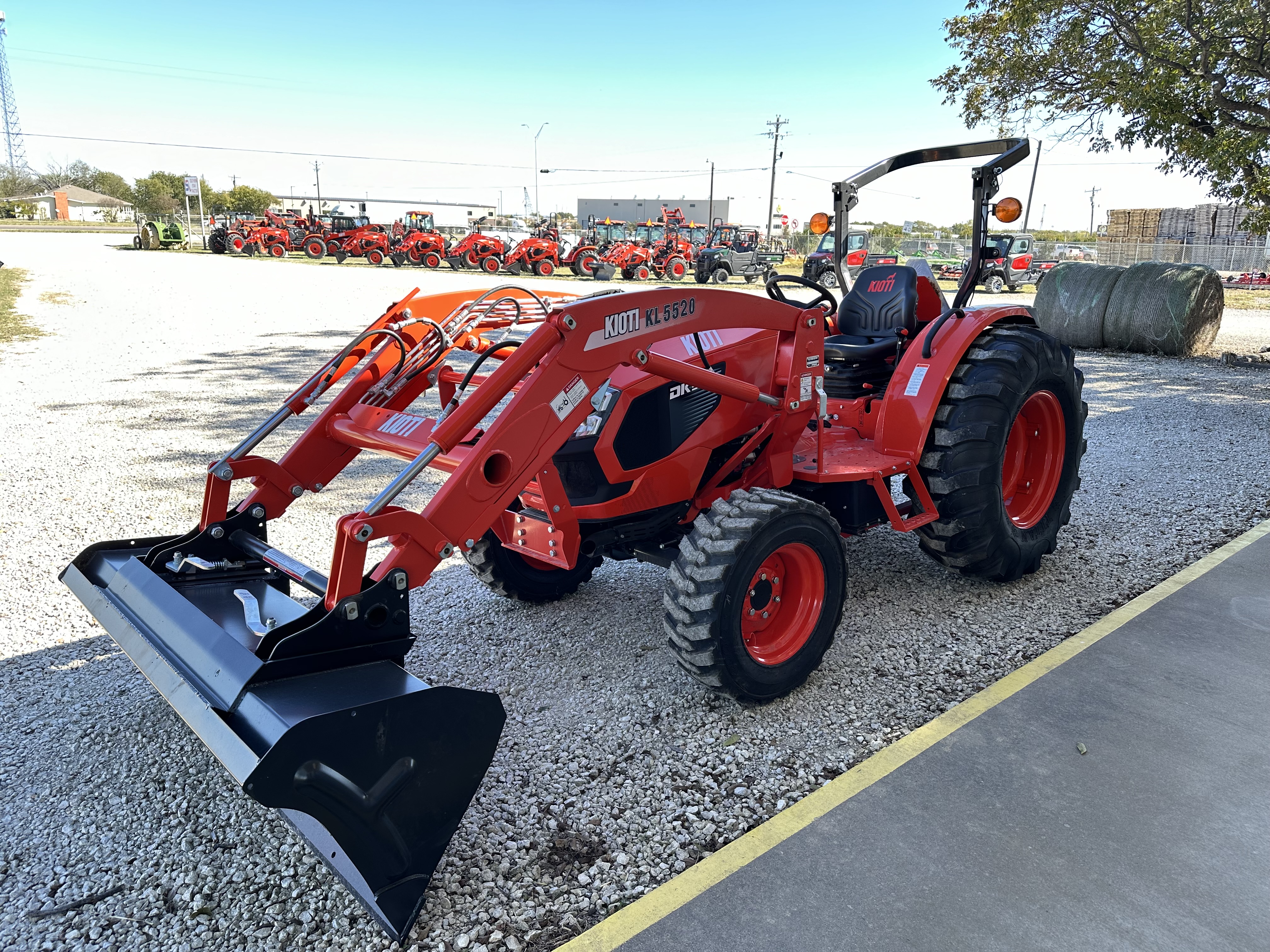

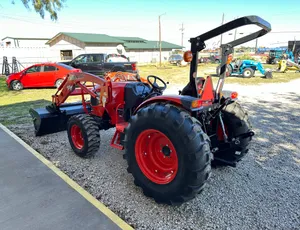

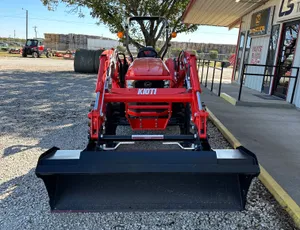

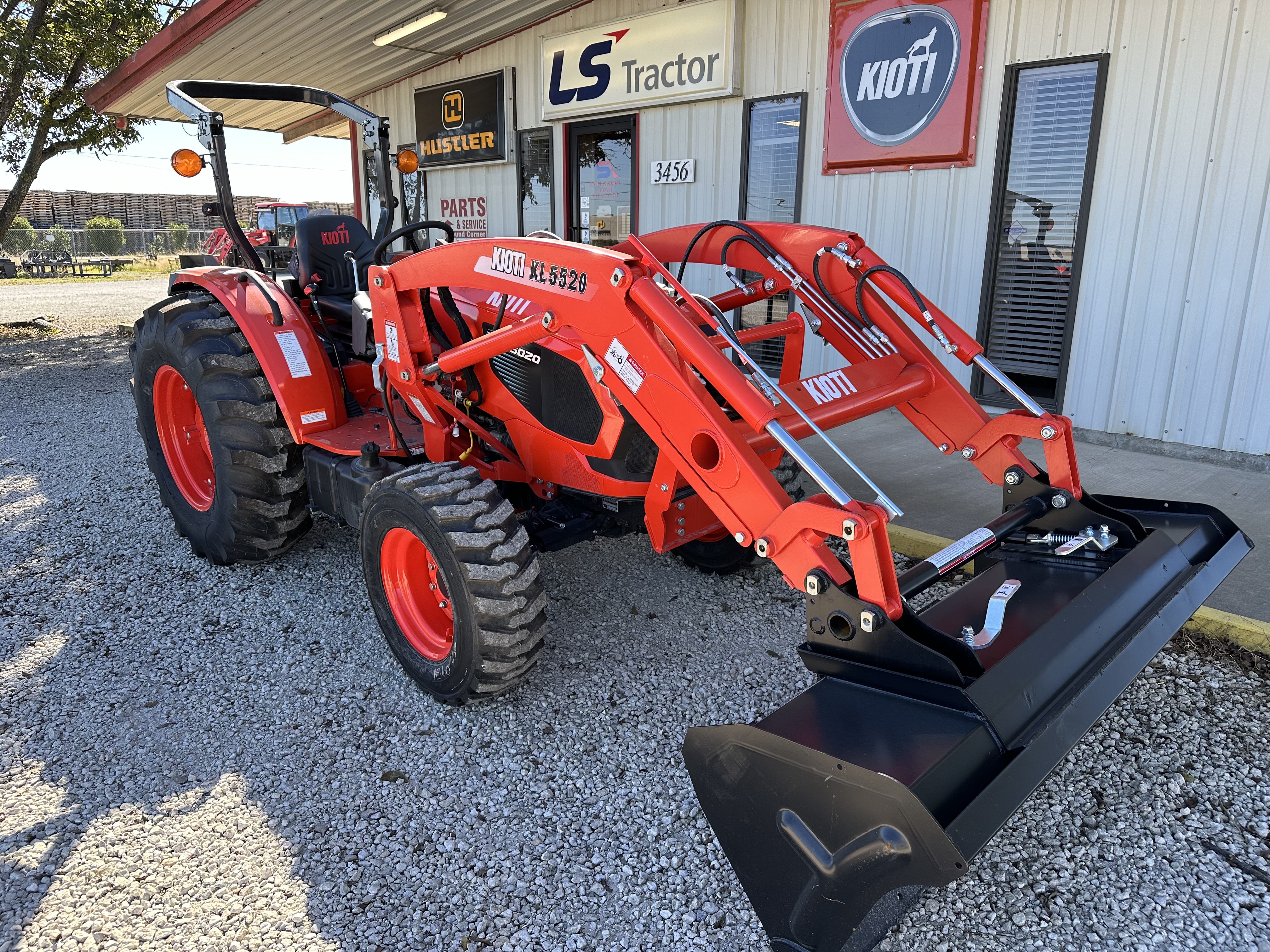

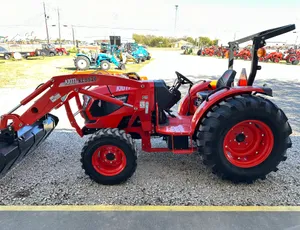

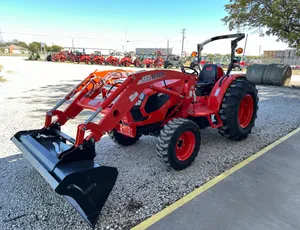

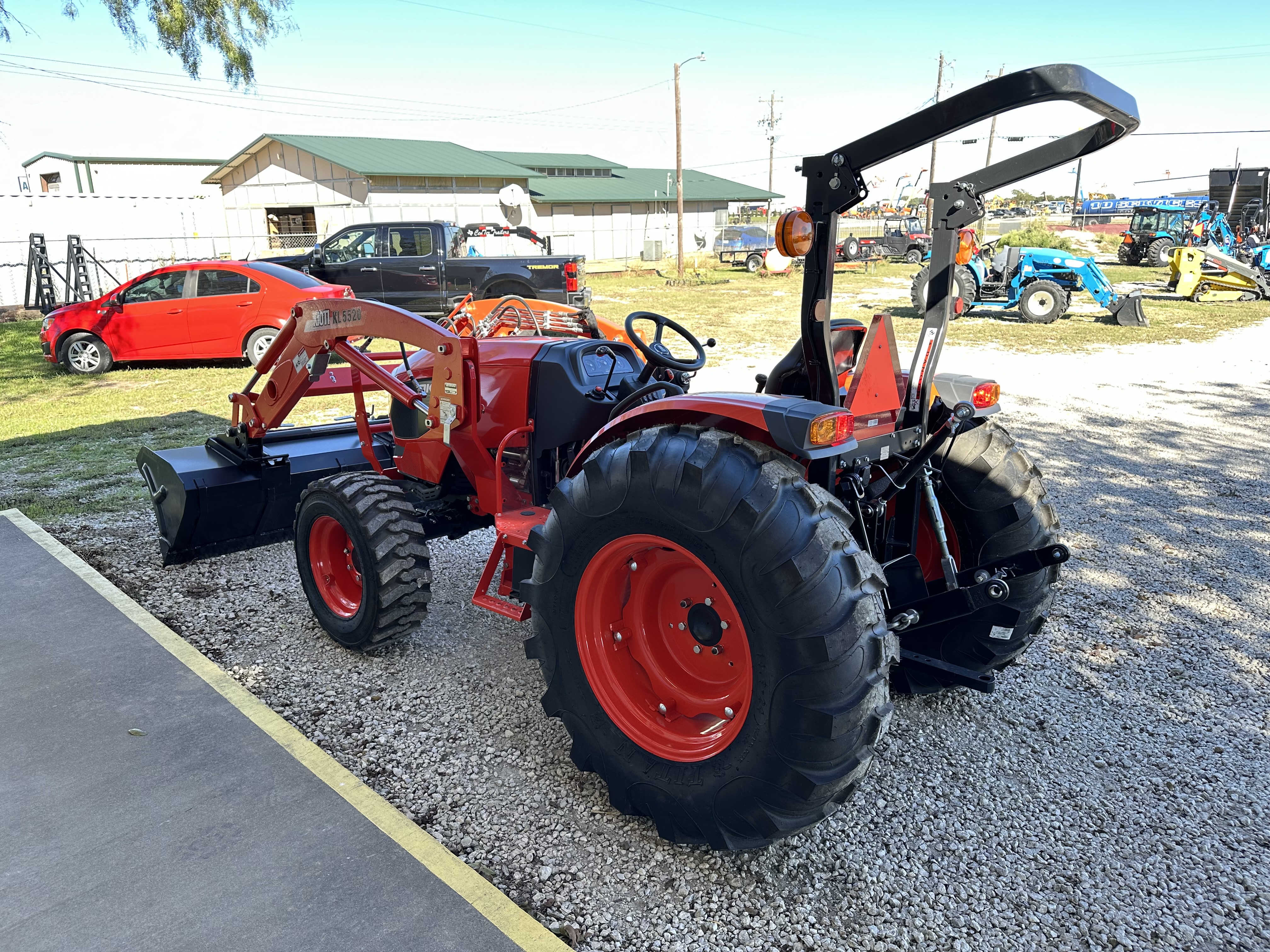

New   Kioti DK5020

back to top

Engine

Model: 3HT-TM4B	Engine Manufacturer: KIOTI
Power: 50.30 hp (37.50 kW)	Displacement: 111.40 cu. in. (1,826 cc)
RPM: 2,600 rpm	Fuel Type: Diesel
Aspiration: Intercular	Fuel Capacity: 11.90 gal (45 L)

back to top

Transmission

Transmission: Manual: Synchro Shuttle	Shuttle: Dry Single Stage
Main Gear: Dry Single Stage	Travel Speeds Forward: 4
Travel Speeds Reverse: 2	Travel Speeds Minimum Speed: 2.08 mph (3.35 km/h)
Travel Speeds Maximum Speed: 26.90 mph (43.30 km/h)	Travel Speeds Min Reverse Speed: 2.03 mph (3.26 km/h)
Travel Speeds Max Reverse Speed: 42.20 mph (26.20 km/h)

back to top

PTO

PTO Type: Independent	PTO Power: 41.50 hp (31 kW)
Rear Speed: 540	Mid Speed: 2,000

back to top

Drive Train

Brakes: Wet Multi Disc	Clutch: Dry Single Stage
Steering: Hydrostatic Power Steering

back to top

Hydraulics

Pump: Gear	Pump Capacity: 16.50 gpm (62.40 lpm)
Lift Capacity: 2,716 lb (1,232 kg)

back to top

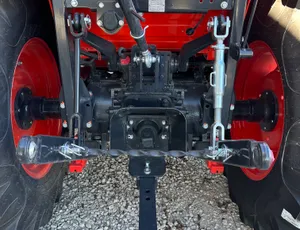

Hitch

Type: Three Point	Category: Category 1
Control Type: Position	Lift Capacity: 2,716 lb (1,232 kg)

back to top

dimensions

Length with Hitch: 124.30 in (3,157 mm)	Width: 62.80 in (1,596 mm)
Wheelbase Length: 71.30 in (1,810 mm)	Ground Clearance: 14.50 in (368 mm)
Front Tread: 49.40 in (1,254 mm)	Rear Tread: 49.30 in (1,251 mm)
Turning Radius: 8.56 ft (2.60 m)	Weight: 3,373 lb (1,530 kg)
Height: 96.80 in (2,458 mm)
