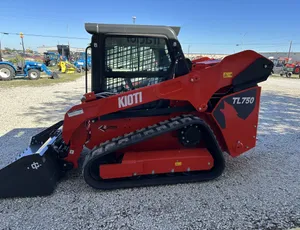

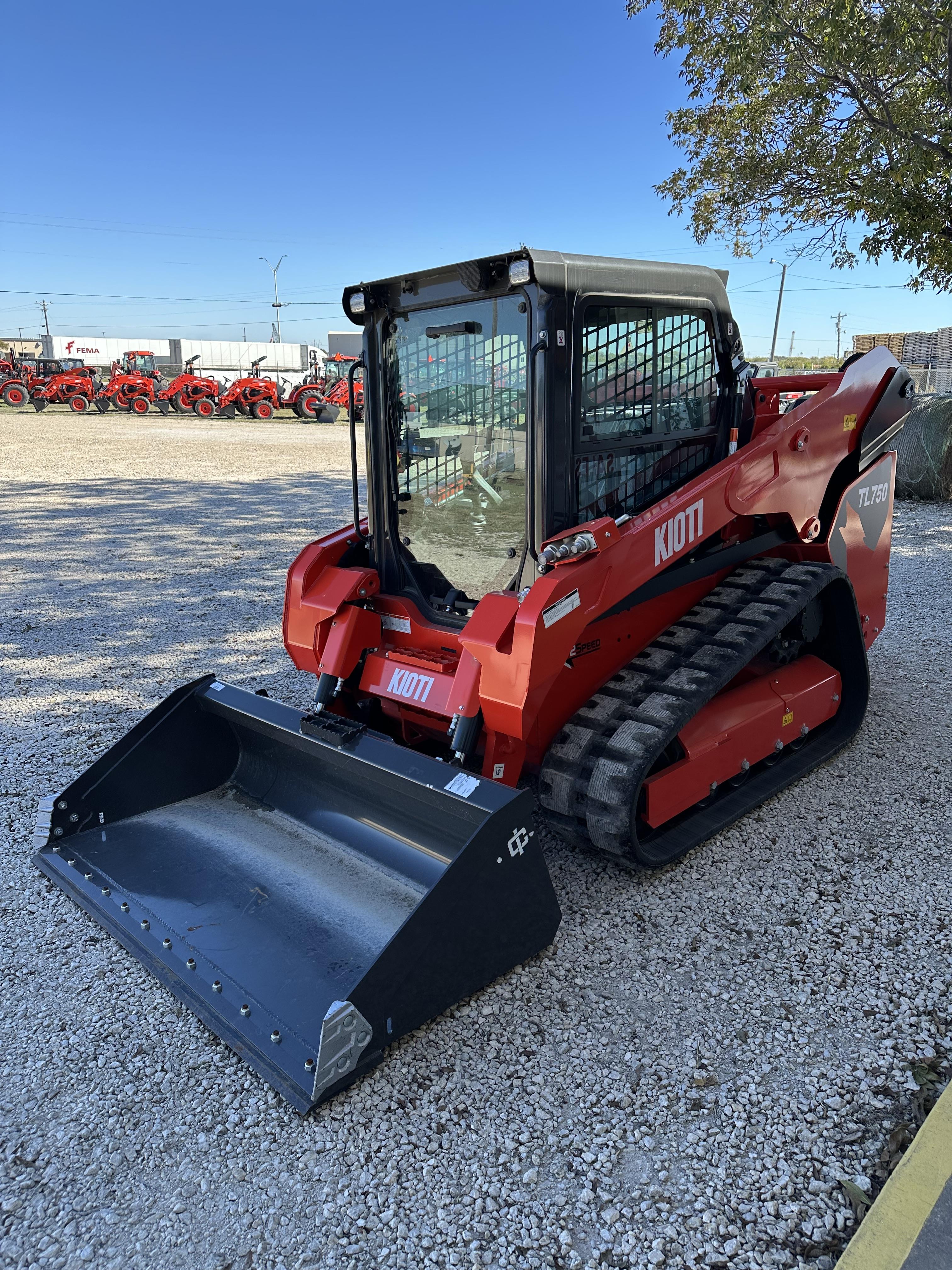

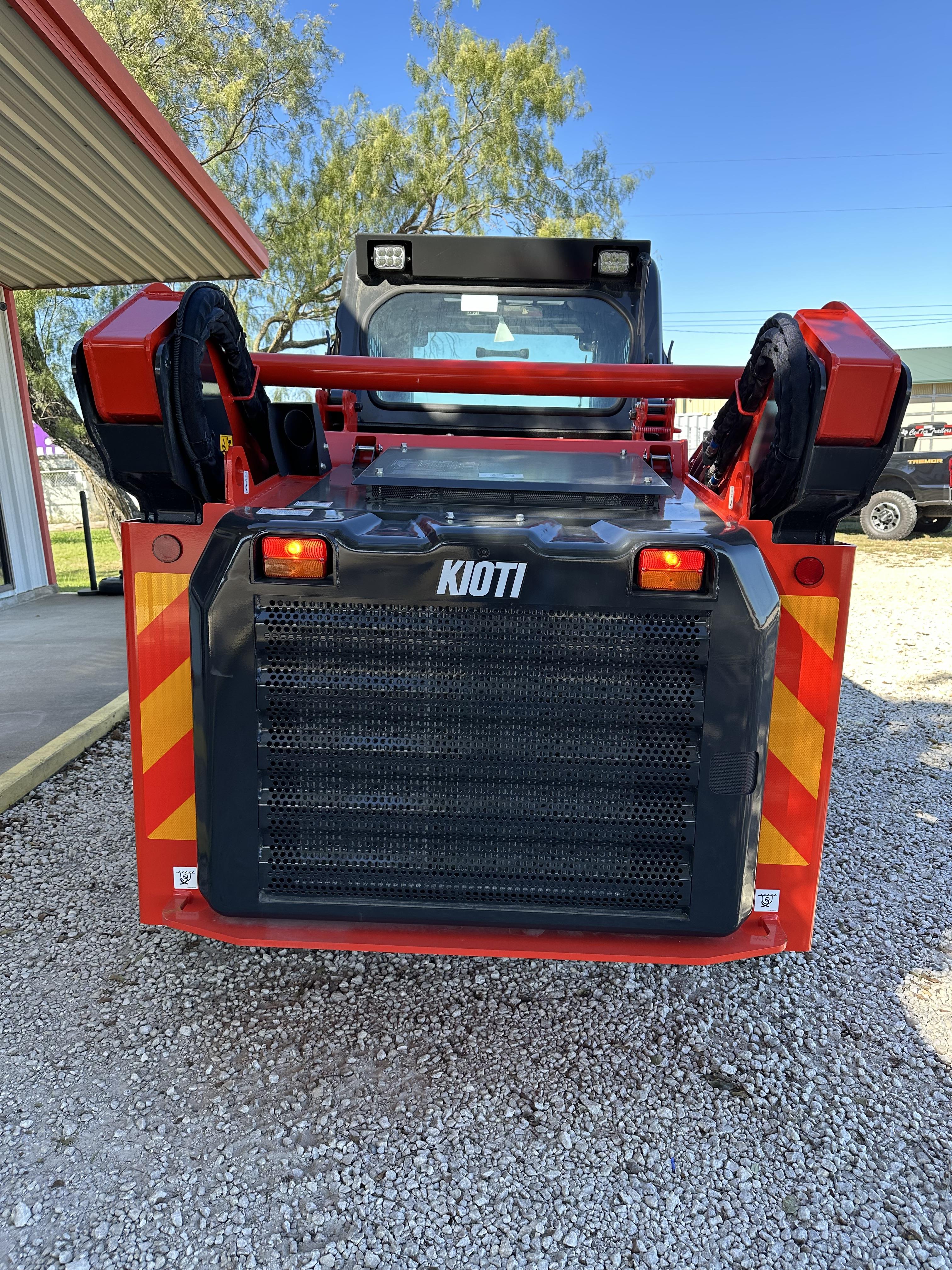

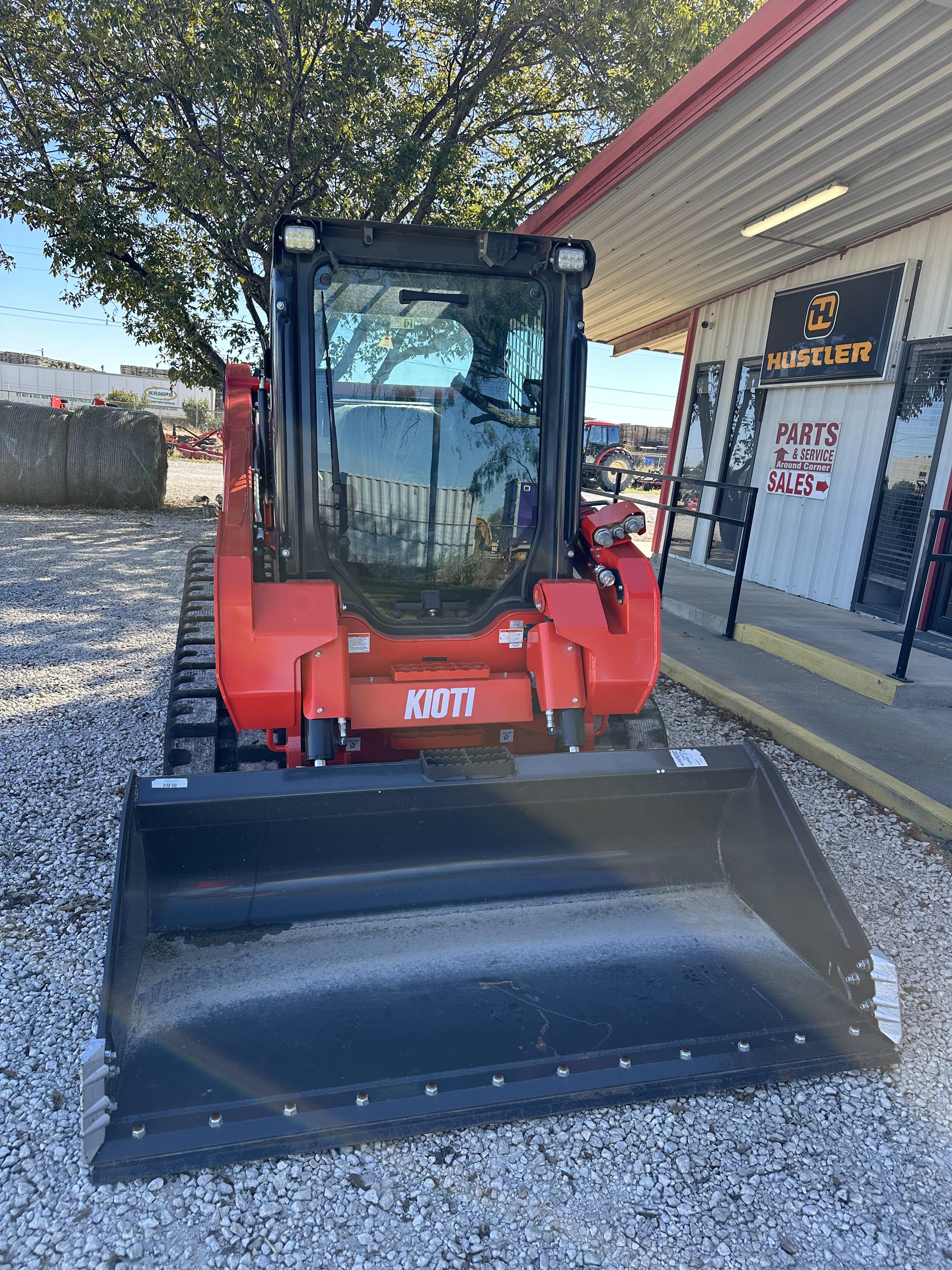

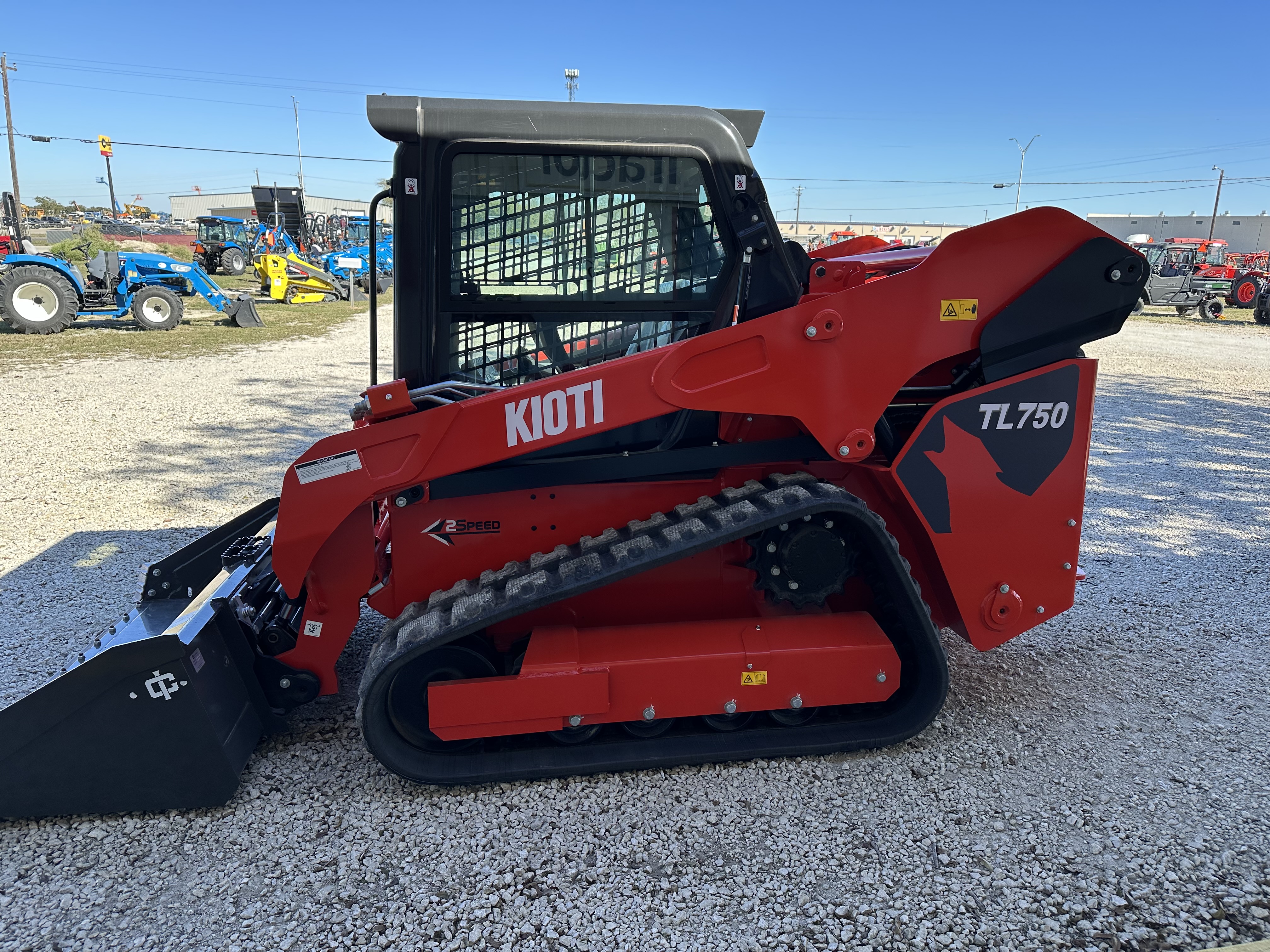

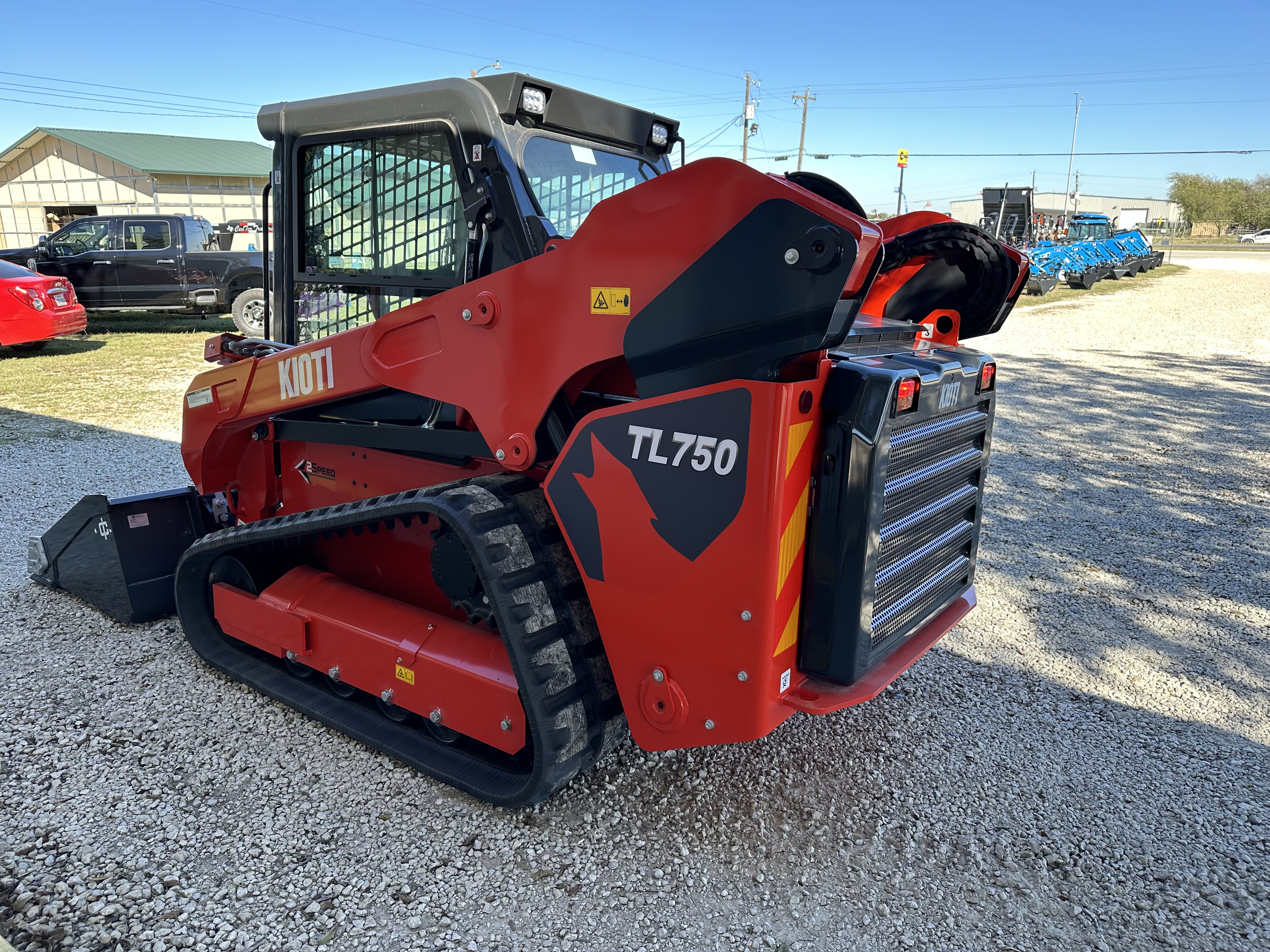

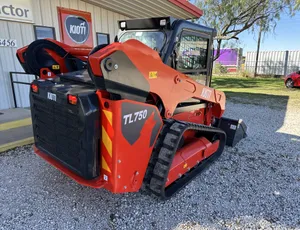

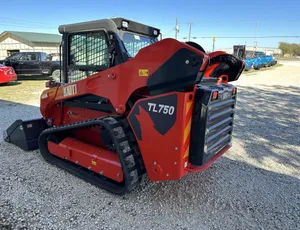

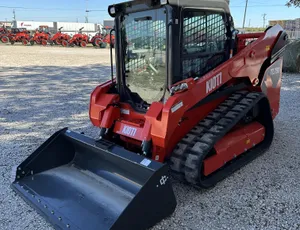

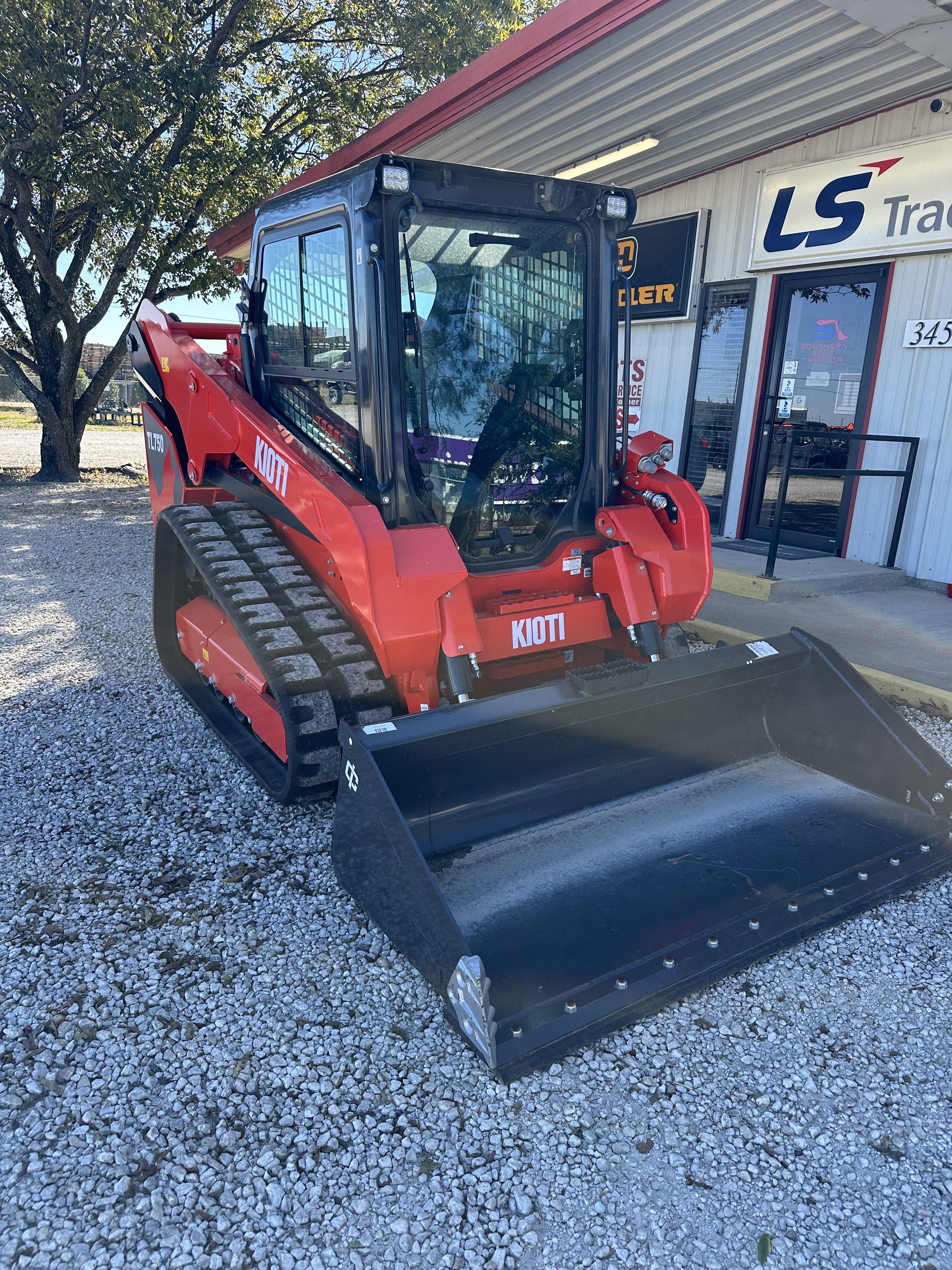

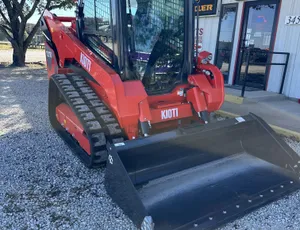

Certified   Kioti TL750U-LQ

back to top

Engine

Engine Model: 4HTI4	Engine Manufacturer: KIOTI
Engine Power: 73.60 hp (54.90 kW)	Engine Displacement: 148.60 cu. in. (2,435 cc)
RPM: 2,400 rpm	Fuel Type: Diesel
Aspiration: Intercular	Fuel Capacity: 26.40 gal (100 L)
Oil Capacity: 2.40 gal (9 L)	Coolant Capacity: 1.10 gal (4.20 L)
Radiator Coolant Capacity: 2.70 gal (10.40 L)

back to top

Hydraulics

Lift Arm Path: Vertical	Lift Control: ISO Pilot
Tank Capacity: 10 gal (38 L)	Pressure: 3,335 psi (230 bar)
Pump Capacity: 21.90 gpm (82.90 lpm)	Hydraulics Power: 41.80 hp (31.10 kW)

back to top

Operating Specs

Tipping Load: 6,570 lb (2,980 kg)	Rated Operating Capacity (50% of Tip Load): 3,285 lb (1,490 kg)
Rated Operating Capacity (35% of Tip Load): 2,299.50 lb (1,043 kg)	Breakout Force, Tilt (Bucket): 5,512 lb (2,500 kg)
Breakout Force, Lift: 5,016 lb (2,275 kg)	Rated Operating Capacity with Optional Counterweights: 2,377 lb (1,078 kg)
Traction Force: 6,482 lb (2,940 kg)	Travel Speed Forward Speeds: 2
Travel Speed Reverse Speeds: 2	Travel Speed Min Speed: 4.70 mph (7.50 km/h)
Travel Speed Max Speed: 7.10 mph (11.50 km/h)

back to top

dimensions

Length of Track on Ground: 56.50 in (1,435 mm)	Overall Length of Track: 176.10 in (4,472 mm)
Length without Bucket: 116.10 in (2,950 mm)	Length with Bucket: 144.70 in (3,675 mm)
Height with Cab & Beacon: 85.70 in (2,178 mm)	Height with Cab: 81.90 in (2,080 mm)
Height Max: 163.80 in (4,160 mm)	Hinge Pin Height at Max Lift: 130.30 in (3,310 mm)
Hinge Pin Height at Carry: 203 in (5,156.20 mm)	Reach at Max Lift and Dump: 43.20 in (1,098 mm)
Clearance at Max Lift and Dump: 101.80 in (2,585 mm)	Ground Clearance: 8.70 in (220 mm)
Departure Angle: 25 °	Dump Angle Max: 42 °
Width: 70.90 in (1,800 mm)	Turning Radius Center to Rear: 67.30 in (1,709 mm)
Turning Radius Center to Coupler: 57.10 in (1,450 mm)	Turning Radius Center to Bucket: 87.50 in (2,223 mm)
Rack Back Angle at Max Height: 88 °	Bucket Pin Reach at Max Lift: 23.50 in (597 mm)
Width with Bucket: 74.40 in (1,890 mm)	Rack Back Angle at Ground Level: 29 °
Front Tread: 55.10 in (1,400 mm)	Rear Tread: 55.10 in (1,400 mm)
Operating weight with operator: 10,061.90 lb (4,564 kg)	Operating weight without operator: 9,896.60 lb (4,489 kg)
Track Width: 15.70 in (400 mm)	Ground Contact Area: 889.70 in² (0.57 m²)
