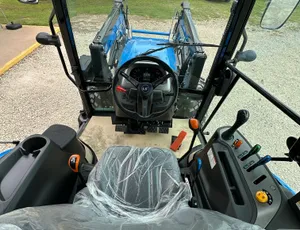

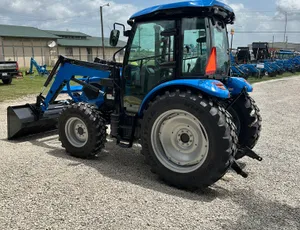

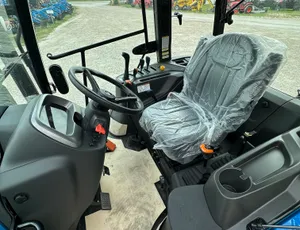

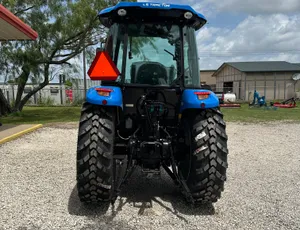

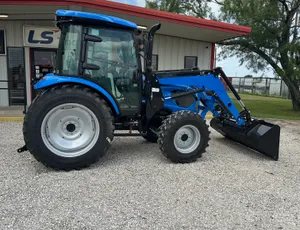

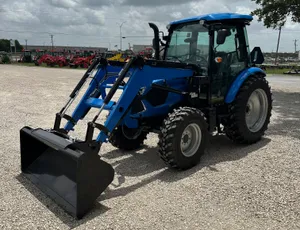

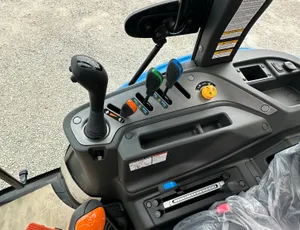

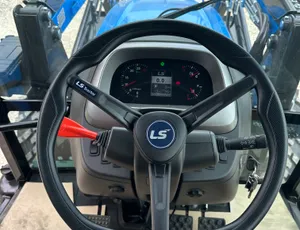

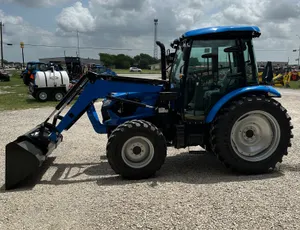

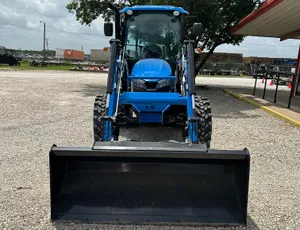

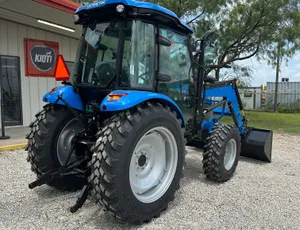

New   LS Tractor MT473CPS

back to top

Engine

Type: Vertical Water-Cooled 4 Cycle Diesel Engine	Model (Tier 4): L4C25-T
Engine HP (Gross): 73	PTO HP: 62.9
Rated Speed (RPM): 2,500	Displacement (cu. in): 152.85
Fuel Tank Capacity (gal): 24.3

back to top

Drive Train

Transmission Type: Power Shuttle	No. of Speed: F16 X R16
Brakes: Wet, Multi-disc	Steering: Hydrostatic Power Steering

back to top

PTO

Type: Independent

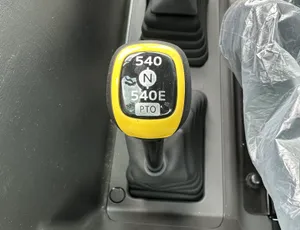

Rear, rpm: 540, 540E (Standard)

back to top

Hydraulic System

Control System: Position / Draft	Implement pump (gpm): 14.5
Steering pump (gpm): 6.6	Total flow (gpm): 21.1
Category, 3 pt hitch: CAT II	Hitch Lift capacity, lbs (Hitch end): 3,483 (@ 24˝ from the Hitch end)
Remote Valves: 2 Pairs (Front), 2 pairs (Rear)

back to top

Dimension

Overall length (Frame to Link, in.): 135	Overall width with tires (in.): 72.6
Wheelbase (in.): 83.1	Height to top (in.): 105.4

back to top

Tire Size

Ag Front / Rear: 9.5 – 24 / 16.9 – 28	IND Front / Rear: 10.5/80×18 10PR / 19.5Lx24 8PR
Large Ag Front / Rear: 11.2-24 / 16.9-30	R14 Front / Rear: 320-85R20 119D / 420/75R34 142D

back to top

Weight

Total weight without ballast (lbs.): 5,886
