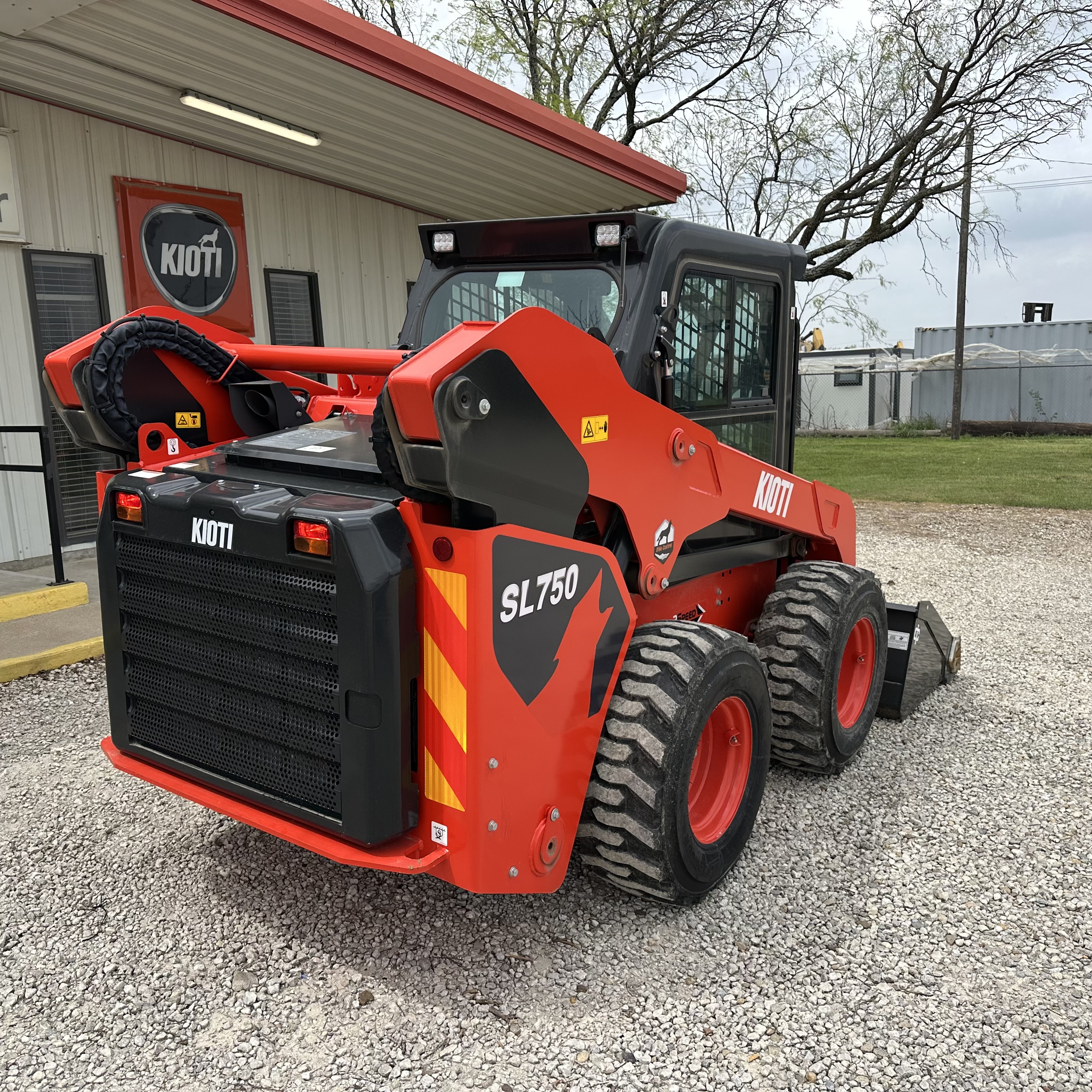

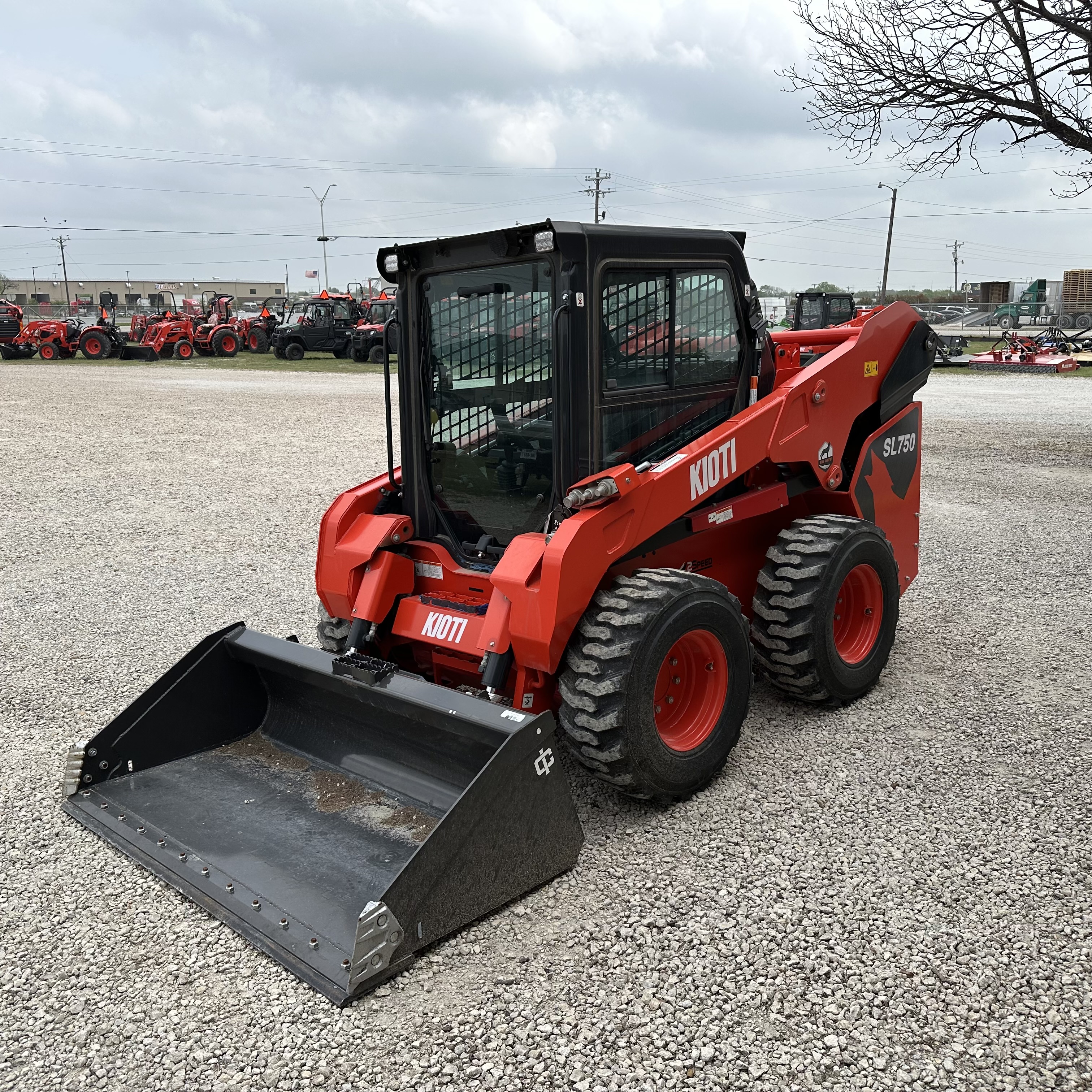

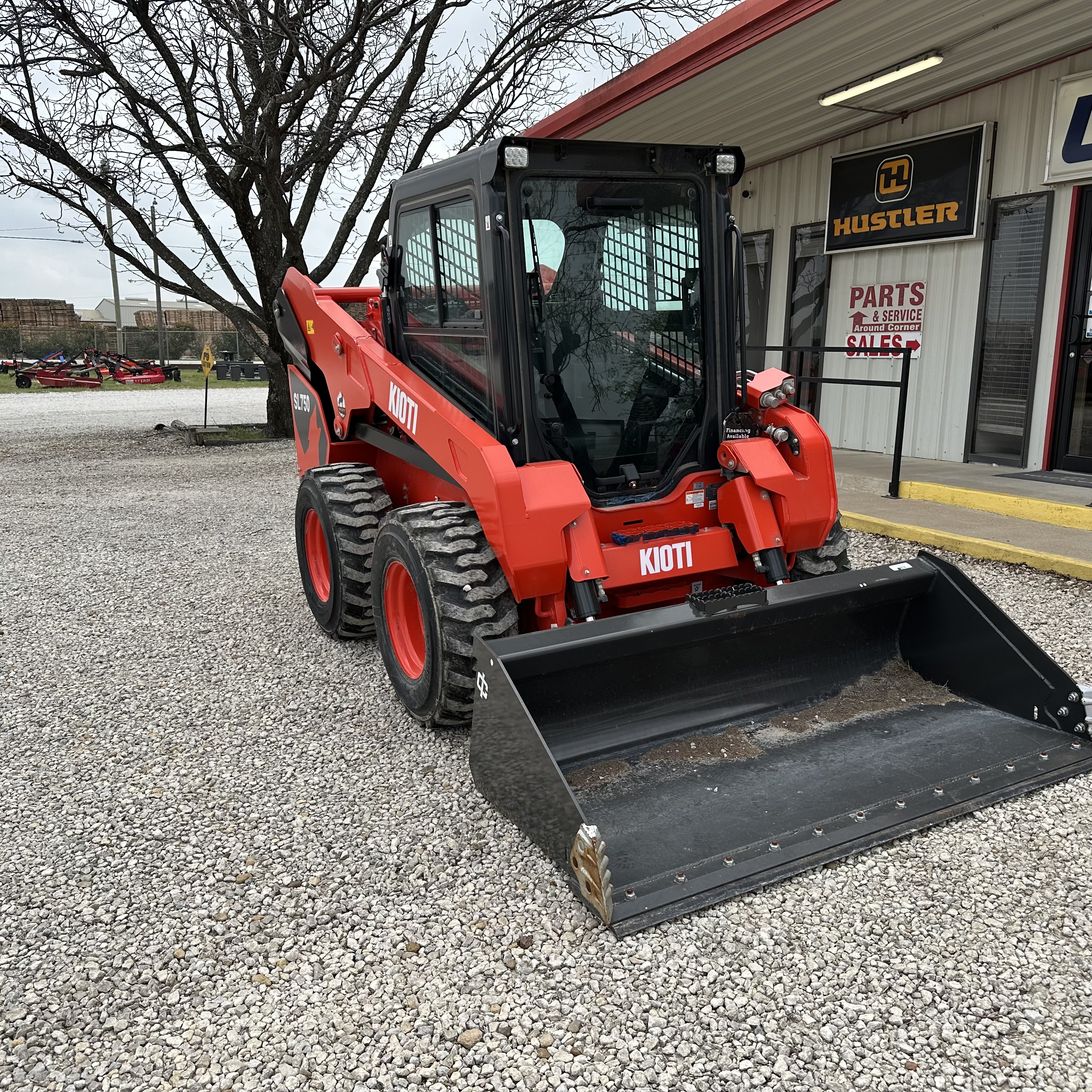

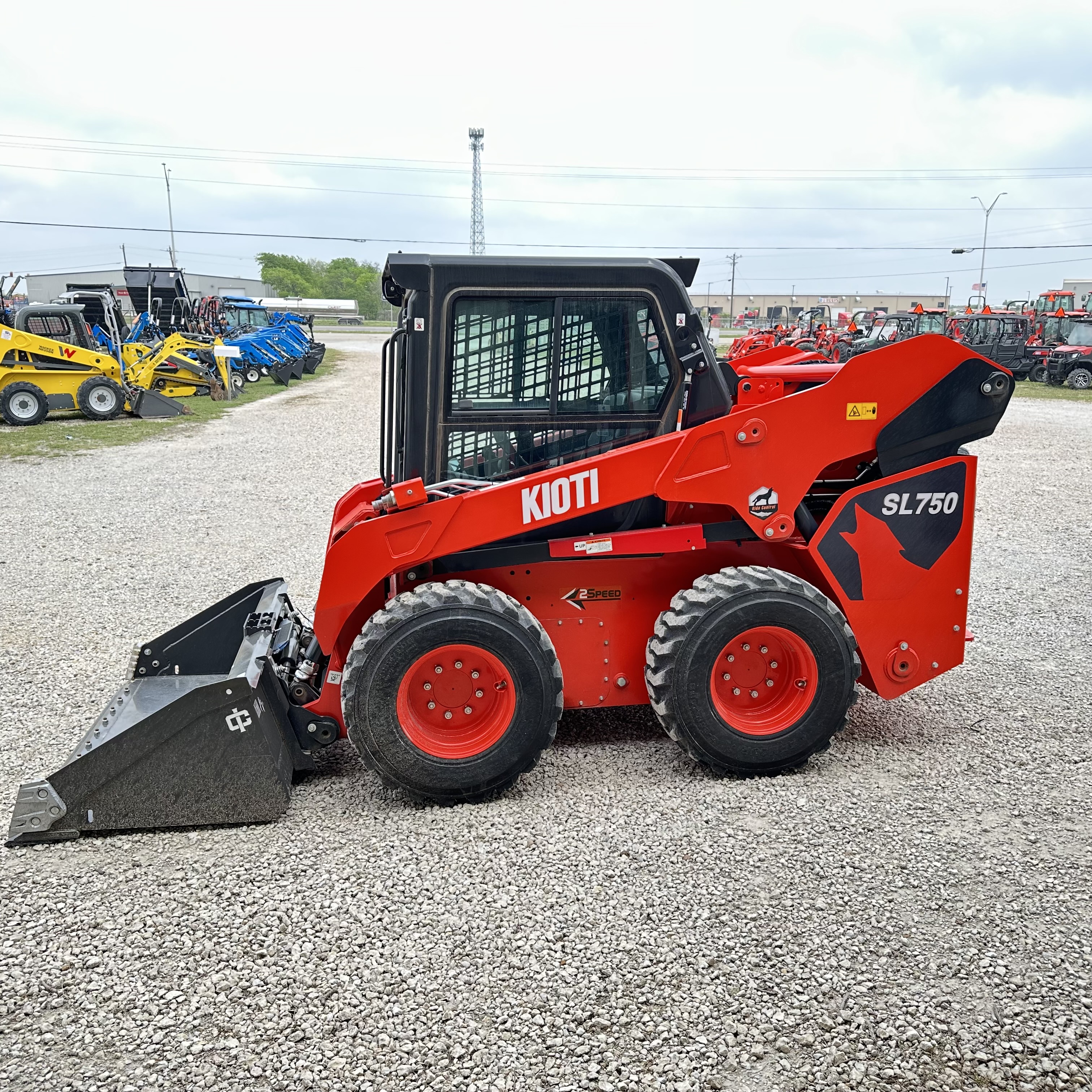

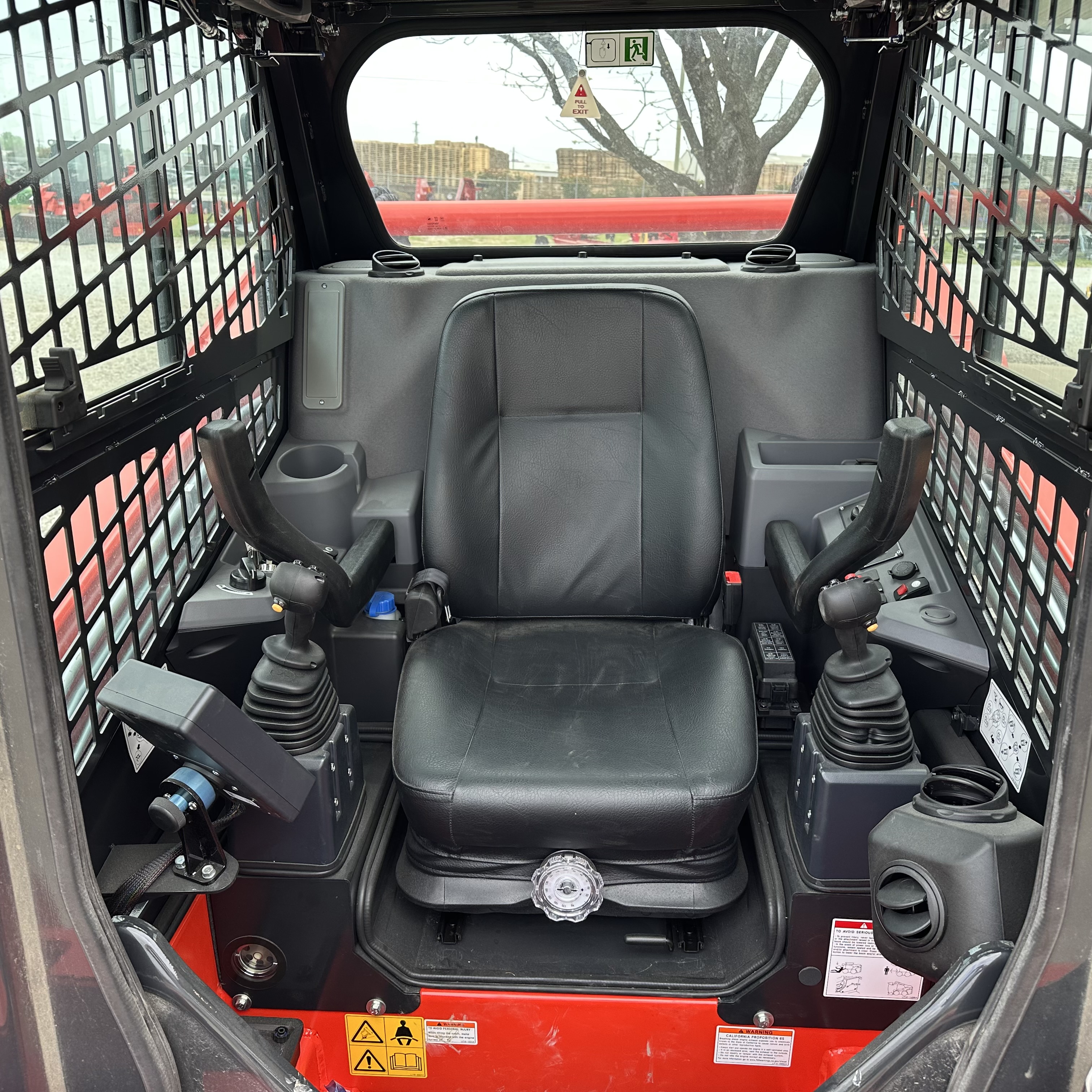

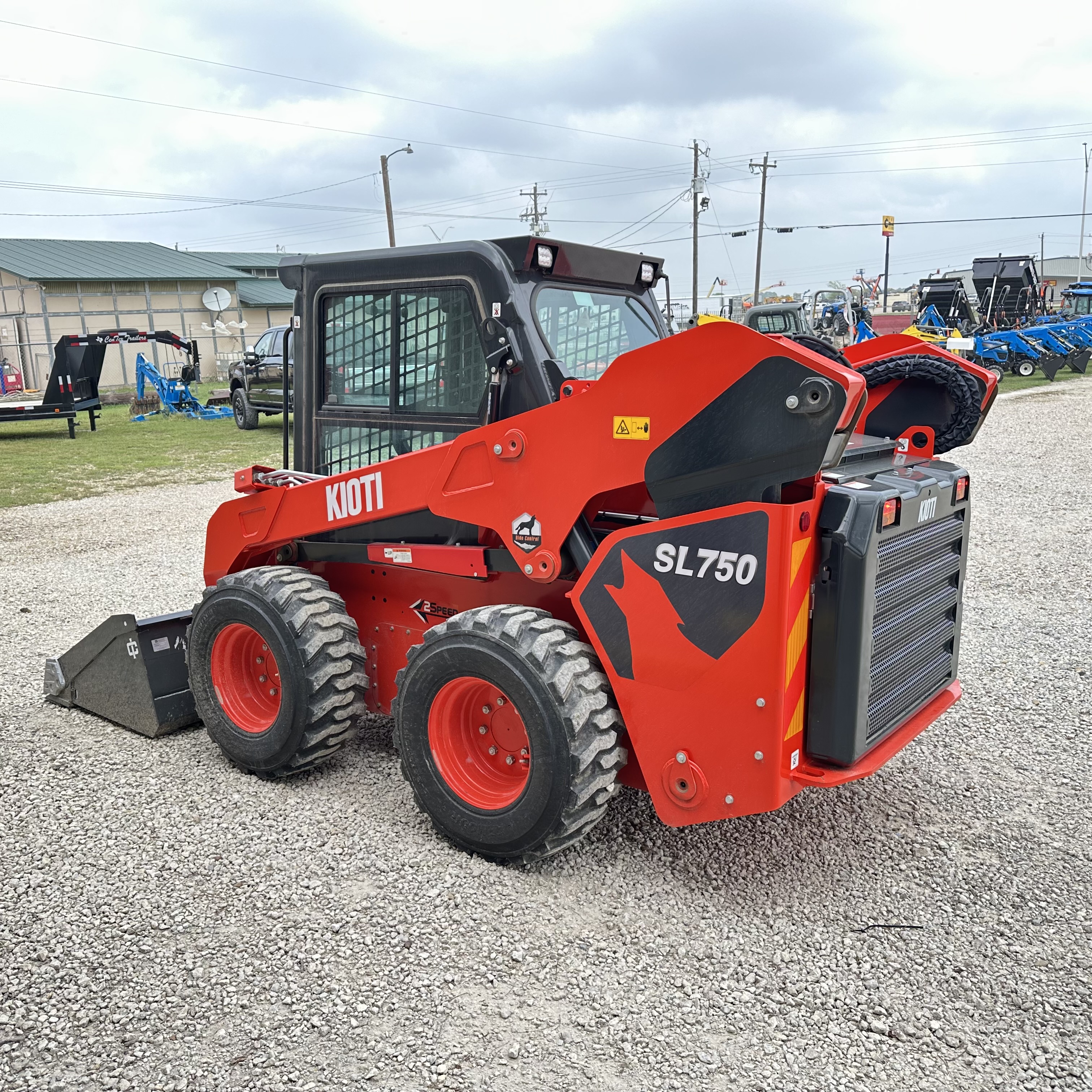

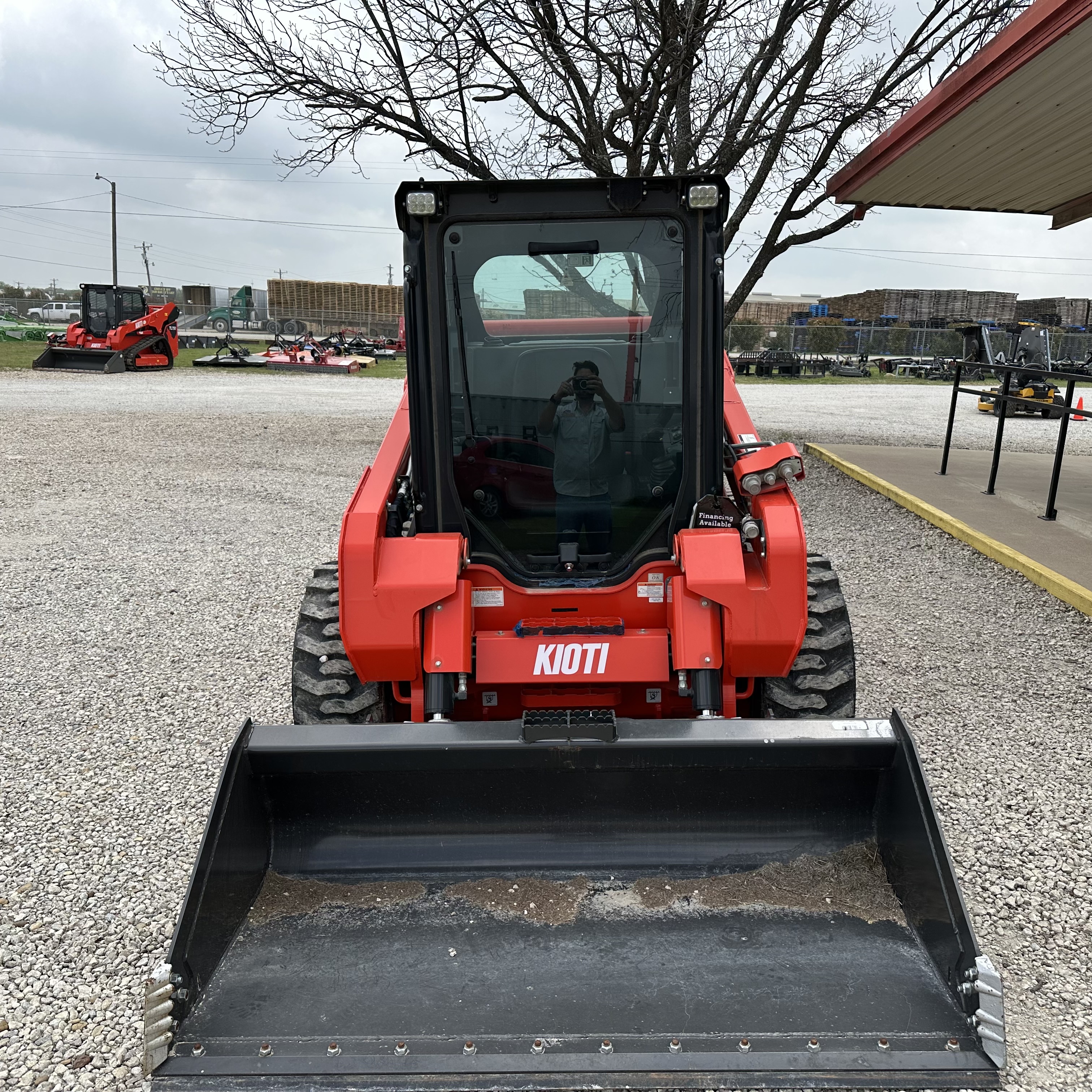

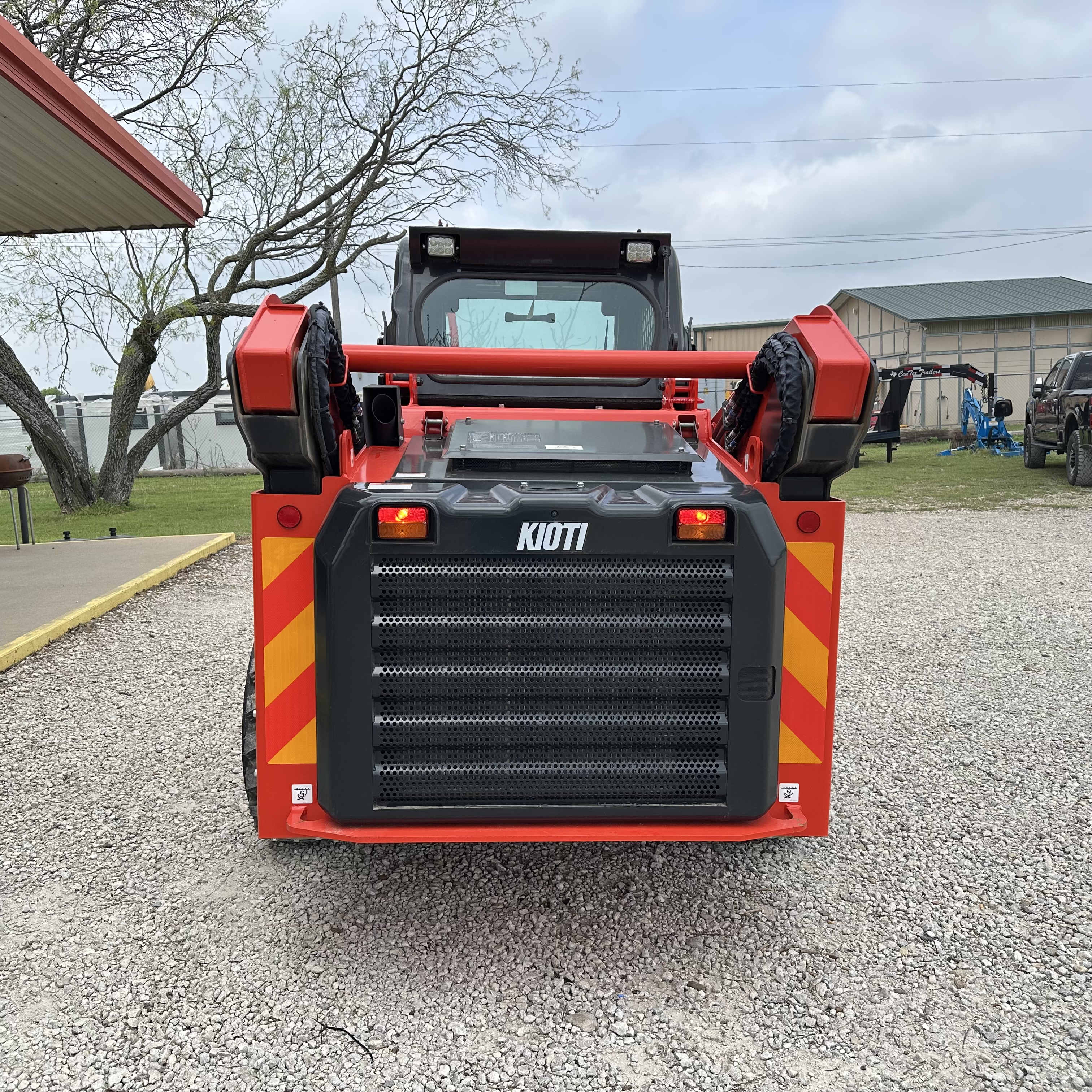

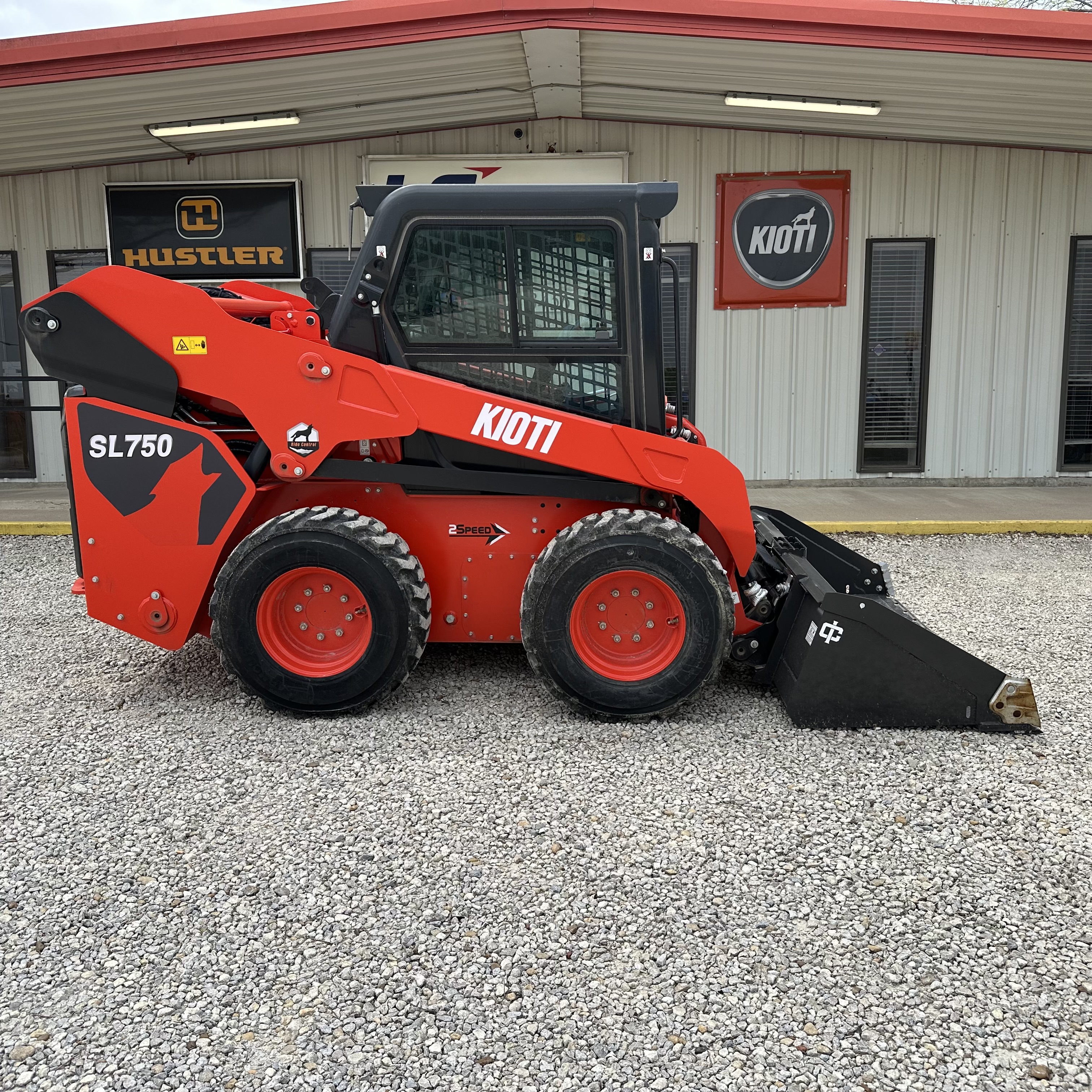

New   Kioti SL750U-LQ

back to top

Engine

Engine Model: 4HTI4	Engine Manufacturer: KIOTI
Engine Power: 73.60 hp (54.90 kW)	Engine Displacement: 148.60 cu. in. (2,435 cc)
RPM: 2,400 rpm	Fuel Type: Diesel
Aspiration: Intercular	Fuel Capacity: 26.40 gal (100 L)
Oil Capacity: 2.40 gal (9 L)	Coolant Capacity: 1.10 gal (4.20 L)
Radiator Coolant Capacity: 10.40 gal (2.70 L)

back to top

Hydraulics

Lift Arm Path: Vertical	Lift Control: ISO Pilot
Tank Capacity: 10 gal (38 L)	Pressure: 3,335 psi (230 bar)
Pump Capacity: 21.90 gpm (82.90 lpm)	Hydraulics Power: 41.80 hp (31.10 kW)

back to top

Operating Specs

Tipping Load: 5,380 lb (2,440 kg)	Rated Operating Capacity (50% of Tip Load): 2,690 lb (1,220 kg)
Rated Operating Capacity (35% of Tip Load): 1,883 lb (854 kg)	Breakout Force, Tilt (Bucket): 5,512 lb (2,500 kg)
Breakout Force, Lift: 5,016 lb (2,275 kg)	Rated Operating Capacity with Optional Counterweights: 2,833 lb (1,285 kg)
Traction Force: 6,347 lb (2,879 kg)	Travel Speed Forward Speeds: 2
Travel Speed Reverse Speeds: 2	Travel Speed Min Speed: 7.15 mph (11.50 km/h)
Travel Speed Max Speed: 12.05 mph (19.40 km/h)	Chain Box Capacity: 3.40 gal (13 L)

back to top

dimensions

Wheelbase Length: 47.20 in (1,200 mm)	Length without Bucket: 116.50 in (2,960 mm)
Length with Bucket: 114.70 in (3,675 mm)	Height with Cab: 81.20 in (2,063 mm)
Height with Cab & Beacon: 85.10 in (2,161 mm)	Height Max: 160.20 in (4,068 mm)
Hinge Pin Height at Max Lift: 126.60 in (3,215 mm)	Hinge Pin Height at Carry: 8.30 in (212 mm)
Reach at Max Lift and Dump: 37.40 in (949 mm)	Clearance at Max Lift and Dump: 97.40 in (2,473 mm)
Ground Clearance: 7.70 in (195 mm)	Departure Angle: 25 °
Bumper Overhang Behind Rear Axle: 44.40 in (1,127 mm)	Dump Angle Max: 42 °
Body Width Above Tires: 71.70 in (1,820 mm)	Turning Radius Center to Rear: 70.40 in (1,788 mm)
Turning Radius Center to Coupler: 60.90 in (1,548 mm)	Turning Radius Center to Bucket: 85 in (2,158 mm)
Rack Back Angle at Max Height: 88 °	Bucket Pin Reach at Max Lift: 16.30 in (414 mm)
Width with Bucket: 74.40 in (1,890 mm)	Rack Back Angle at Ground Level: 29 °
Front Tread: 59.60 in (1,513 mm)	Rear Tread: 59.60 in (1,513 mm)
Operating weight with operator: 8,633 lb (3,916 kg)	Operating weight without operator: 8,468 lb (3,841 kg)
